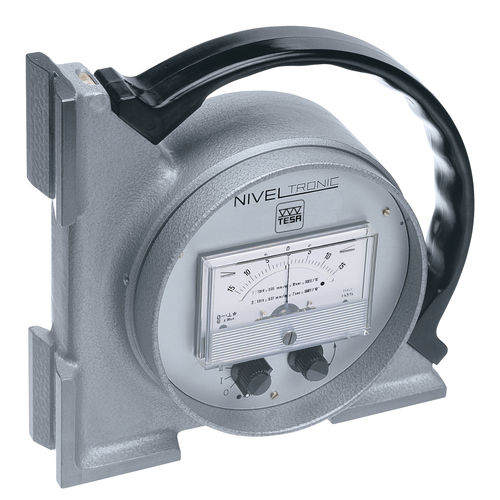

Horizontal level NIVELTRONIC series

verticalelectronicinspection

Standard - DIN 2276 Electromagnetic compatibility - EN 50081-1/2, EN 50082-1/2 Max. perm. errors - As per DIN 2276 - up to 0,5 x measuring range: min. 0,001 mm/m, max. 1 % of the measured value - from 0,5 x measuring range: max. 1 % of (2 x measured value - 0,5 x total range) Repeatability - 1 µm/m Material - Base: cast iron Horizontal model with granite base Power supply - 4 batteries AAA, 1,5 V Measuring range [mm] - ± 0,75 / ± 0,15 - Resolution [mm] - 0,05 / 0,01 - Dimensions - 150 x 45 - Weight [g] - 2599 - Weight - 3,7 - Weight [lb(s - 5,7298 Measuring range [mm] - ± 0,75 / ± 0,15 - Resolution [mm] - 0,05 / 0,01 - Dimensions - 200 x 45 - Weight [g] - 3013 - Weight - 4,4 - Weight [lb(s - 6,6425
