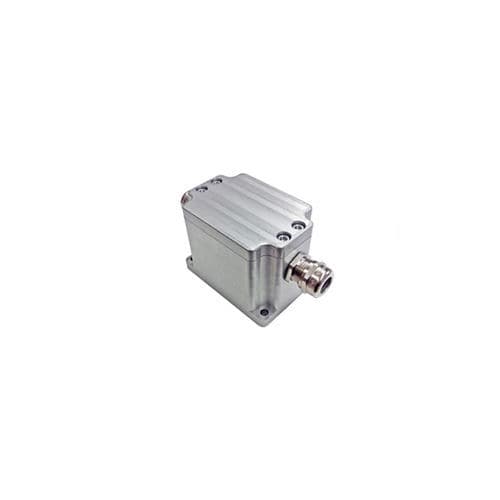

2-axis inclinometer ACE-080-2-C902-HW2-CW

SAE J1939CAN BusIP67

Product overview
POSITAL TILTIX two‑axis inclinometer ACE-080-2-C902-HW2-CW with J1939 interface, certified for ATEX Zone 1 & 21 (Oil & Gas). Protection class IP65 / IP67; stainless steel housing and PUR potting.

General specifications
Application: 2-axis position monitoring and leveling
Measurement range: ±80°
Accuracy (INL): ±0.10° (within ±60°)
Resolution: 0.01°

Electrical specifications
Supply voltage: 10–30 VDC
Current consumption: ≤65 mA @10 V DC; ≤60 mA @24 V DC
EMC emission: DIN EN 61000-6-4
EMC immunity: DIN EN 61000-6-2
Reverse polarity protection: Yes
Short-circuit protection: Yes
MTTF: 350 years @ 40 °C

Environmental specifications
Operating temperature: -40 °C to +70 °C
Storage temperature: -40 °C to +85 °C
Temperature gradient: 0.004°/K
Protection class (housing): IP65 / IP67
Shock resistance: ≤100 g (half sine 6 ms, EN 60068-2-27)
Vibration resistance: 1.5 mm (10–58 Hz) & ≤20 g (58–2000 Hz)

Mechanical specifications
Housing material: Stainless steel V4A (1.4404, 316L)
Potting material: PUR (polyurethane)
Weight: 200 g (0.44 lb)

Interface
Interface: J1939 (DS-410 profile)
Settling time: 150 ms
Output driver: Transceiver (ISO 11898), galvanically isolated by opto-couplers
Transmission rates: 125 / 250 / 500 kBaud (default 250 kBaud)
Default Node ID: 1h
Default PGN: PGN 65283 (Pitch, Roll)

Electrical connection
Connection type: 1 m PVC cable
Minimum bend radius: 50 mm fixed, 100 mm flexing

Product life cycle & approvals
Product life cycle: New
Approvals: CE and ATEX Zone 1 & 21 (Oil & Gas)

Connection plan (signal → color)
Power Supply → Red
GND → Yellow
CAN High → White
CAN Low → Brown
CAN GND → Green
Not connected → Blue / Gray / Pink
Shielding → Shield

Available downloads (no links)

• Datasheet
• 2D drawing
• 3D housing drawing
• CE certificate
• Configuration file
• Configuration

Technical specifications

• Product family / series: ACE-080
• Model: ACE-080-2-C902-HW2-CW
• Brand: POSITAL
• Axes: 2 (pitch & roll)
• Measurement range: ±80°
• Accuracy (INL): ±0.10° within ±60°
• Resolution: 0.01°
• Interface: J1939 (DS-410)
• Transmission rates supported: 125 / 250 / 500 kBaud (default 250 kBaud)
• Default PGN: 65283 (Pitch, Roll)
• Default Node ID: 1h
• Supply voltage: 10–30 VDC
• Current consumption: ≤65 mA @10 V; ≤60 mA @24 V
• Reverse polarity and short-circuit protection: Yes
• MTTF: 350 years @ 40 °C
• Operating temperature: -40 °C to +70 °C; storage: -40 °C to +85 °C
• Protection class: IP65 / IP67
• Housing: Stainless steel V4A (316L); potting: PUR
• Shock & vibration: ≤100 g (6 ms) / 1.5 mm (10–58 Hz) & ≤20 g (58–2000 Hz)
• Connection: 1 m PVC cable (min. bend radius 50 mm fixed / 100 mm flexing)
• Certifications: CE + ATEX Zone 1 & 21 (Oil & Gas)
