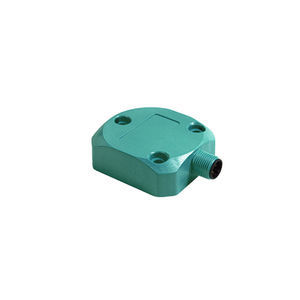

1-axis inclinometer ACS-360-1-CA01-VE3-D4

CANCANopenMEMS

Overview
POSITAL TILTIX 1-axis inclinometer for single-axis position monitoring and leveling. CANopen interface (DS-410), static/accelerometer sensor technology, IP66/IP67 protection.

Key specifications
Application: single-axis position monitoring and leveling
Measurement range: up to 360°
Accuracy (INL): ±0.10°
Resolution: 0.01°
Base sensor cycle time: 500 µs
Device orientation: vertical

Electrical specifications
Supply voltage: 10–30 VDC
Current consumption: ≤ 65 mA @ 10 V DC; ≤ 60 mA @ 24 V DC
EMC (emitted): DIN EN 61000-6-4
EMC (immunity): DIN EN 61000-6-2
Reverse polarity protection: yes
Short-circuit protection: yes
MTTF: 350 years @ 40 °C

Environmental specifications
Operating temperature: -40 °C to +85 °C
Storage temperature: -40 °C to +85 °C
Temperature gradient sensitivity: 0.004°/K
Protection class (housing): IP66/IP67
Shock resistance: ≤ 100 g (half sine 6 ms, EN 60068-2-27)
Vibration resistance: 1.5 mm (10–58 Hz) & ≤ 20 g (58–2000 Hz)

Mechanical specifications
Housing material: fibre-reinforced PBT (Polybutylene Terephthalate)
Potting material: none
Weight: 45 g (0.10 lb)

Interface & communication
Interface: CANopen (profile DS-410)
Settling time: min 30 ms; default 200 ms (filter dependent)
Output driver: transceiver (ISO 11898), galvanically isolated by opto-couplers
Transmission rate: 20 kBaud – 1 MBaud (default 125 kBaud)
Default node ID: 1h

Electrical connection & pinout
Connection type: Deutsch DT04-4P + 0.3 m cable
Connector: Deutsch DT04-4P
Pinout: Power supply = pin 1; CAN High = pin 2; GND = pin 3; CAN Low = pin 4

Certification & lifecycle
Approvals: CE
Product status: new

Technical features

• Product family/series: ACS-360
• Model: ACS-360-1-CA01-VE3-D4
• 1-axis inclinometer (TILTIX)
• Measurement range up to 360°
• Accuracy (INL): ±0.10°; resolution: 0.01°
• Static / accelerometer sensor technology
• CANopen interface (DS-410), 20 kBaud–1 MBaud (default 125 kBaud)
• Default node ID: 1h; settling time: min 30 ms (default 200 ms)
• Supply voltage: 10–30 VDC; current consumption: ≤ 65 mA @10 V, ≤ 60 mA @24 V
• Protections: reverse polarity and short-circuit protection
• EMC: DIN EN 61000-6-4 (emitted), DIN EN 61000-6-2 (immunity)
• MTTF: 350 years @ 40 °C
• Operating temp: -40 °C to +85 °C; protection: IP66/IP67
• Housing: fibre-reinforced PBT; weight: 45 g
• Electrical connection: Deutsch DT04-4P (panel cutout & 0.3 m cable)
