1-axis inclinometer ACS-360-1-AV40-VE3-PM

analogvoltage outputMEMS

Product overview

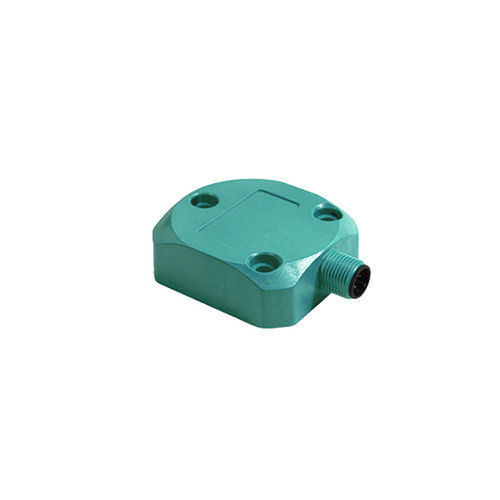

POSITAL TILTIX 1-axis inclinometer POSITAL ACS-360-1-AV40-VE3-PM. Analog voltage output 0.5–9.5 V, 360° measurement range, static/accelerometer sensor technology and IP66/IP67 protection.

Key specifications

• Application: single-axis position monitoring and leveling
• Measurement range: 360°
• Accuracy (INL): ±0.10°
• Resolution: 0.01°
• Base sensor cycle time: 500 µs
• Device orientation: vertical

Electrical specifications

• Supply voltage: 10–30 VDC
• Power consumption: ≤ 0.7 W
• Output: analog voltage 0.5–9.5 V, minimum load 5 kΩ
• EMC: emission DIN EN 61000-6-4; immunity DIN EN 61000-6-2
• Reverse polarity and short-circuit protection
• MTTF: 400 years @ 40 °C

Environmental specifications

• Operating temperature: -40 °C to +85 °C
• Storage temperature: -40 °C to +85 °C
• Temperature gradient: 0.004°/K
• Protection class: IP66/IP67
• Shock resistance: ≤ 100 g (half-sine 6 ms, EN 60068-2-27)
• Vibration resistance: 1.5 mm (10–58 Hz) & ≤ 20 g (58–2000 Hz)

Mechanical specifications

• Housing material: fibre-reinforced PBT (Polybutylene Terephthalate)
• Potting material: none
• Weight: 45 g

Interface

• Analog voltage output 0.5–9.5 V
• Teach-in: preset
• Settling time: 125 ms
• Linearity: ±0.02%

Electrical connection

• Connector: M12, male, 5 pin, A-coded
• Panel cutout: M12 (5-pin)

Product life cycle & approvals

• Product status: new
• Approvals: CE

Documentation & accessories
Includes connection plan, dimensional drawings and analog output characteristic diagrams. Compatible accessories: M12 PUR cables (2/5/10 m), angled variants and analog displays (AP22-D0, DiMod-A).

Technical specifications

• Model: ACS-360-1-AV40-VE3-PM
• 1-axis inclinometer (TILTIX series)
• Measurement range: 360°; resolution: 0.01°
• Accuracy (INL): ±0.10°; linearity: ±0.02%
• Supply: 10–30 VDC; consumption ≤ 0.7 W
• Analog output: 0.5–9.5 V; min. load 5 kΩ; settling time 125 ms
• Protection: IP66/IP67; operating temperature -40 °C to +85 °C
• Housing: fibre-reinforced PBT; connector: M12 5-pin A-coded; weight 45 g
