Multi-axis inclinometers

Inclination: -60 ° - 60 °

... Inclination sensors detect the absolute deviation from a horizontal plane. This product group includes analog inclination sensors as well as the latest generation with CANOpen-connection, digital AC-switching outputs ...

Inclination: -15 ° - 360 °

... machinery. Angular measurement is, for instance for equipment levelling, performed in such cases by means of dual axis pendulum systems. Single axis pendulum systems detect e.g. - angular positions of a crane ...

... and rotation rate sensor in MEMS design, the rotation speeds are measured without the sensor being firmly connected to the axis of rotation. Special mathematical filter functions result in a very accurate rotation rate signal that is ...

Inclination: -70 ° - 360 °
Resolution: 0.1 °

... The FAS-A® Inclinometer is designed to provide 1 and 2- axis static and quasi-dynamic orientation measurements. It incorporates 3 accelerometers together with an on-board microprocessor, embedded software algorithm, non-volatile ...

Inclination: 6 ° - 140 °
Resolution: 0.0006 °

... market and associated them to the digital signal compensation and processing stage to obtain a tilt sensor that matches the key performances of servo- inclinometers, at an optimized cost. It achieves a maximum scale ...

Inclination: -90 ° - 90 °
Resolution: 0.01 °

... The dual- axis dynamic inclinometer (hereinafter referred to as "the product") integrates a six- axis MEMS sensor with advanced circuitry. It measures inclination by detecting changes in static gravitational ...

Inclination: 4 ° - 30 °
Resolution: 0.003 °

... he fixed biaxial inclinometer allows you to continuously monitor the inclination of inclinometer tubes and obtain data that can be stored digitally in situ and on a web server. Available in biaxial ...

Inclination: -60 ° - 360 °

... They are transducers employed for the survey of listing angle, with reference to earth's axis. These inclinometers employ a solid state sensor, vibrations and shock-resistant, without parts in motion. Types: • with analogic ...

Inclination: -180 ° - 180 °
Resolution: 0.05, 0.001, 0.0006, 0.0001, 0.0003 °

... The Inclinometer Sensor and Tilt Sensor Range is suitable for use in geophysical monitoring and crane tilt detection. It can also be utilized in the marine industry, for the list and trim measurement. The unit is efficient ...

Inclination: -10 ° - 10 °

... Feature - Uniaxial, Biaxial sensor - Minimized drift signal - Good Repeatability - Excellent Linear output - Waterproof coated aluminium case - Adopted MEMS Sensor ...

Inclination: -90 ° - 90 °
Resolution: 0.5 °

... Wireless Tilt And Inclinometer Sensor Introducing NCD’s Industrial IoT Wireless Tilt and Inclinometer Sensor, boasting up to a 2 Mile range using a wireless mesh networking architecture. This Industrial IoT Wireless ...

Resolution: 0.0003 °

Using Resensys’s high precision tilt SenSpot™ sensors (HRT), movement, settling, deformation and abnormal tilting of bridge piers are detected before such issues become major problems or lead to safety compromise and/or road closure. High precision tilt ...

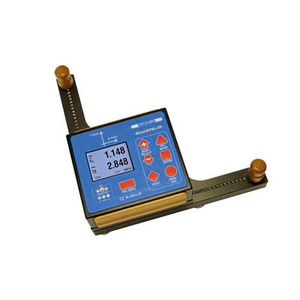

... 2- Axis Ultra Precision Inclinometer - Model: DWL 8500XY DWL-8500XY is a 2- Axis Ultra Precision Inclinometer with built-in Vibrometer, having resolution and accuracy of 1 arcsec or ...

Inclination: -1 grad - 1 grad
Resolution: 0.00005 grad

... The perfect dual- axis inclinometer for measuring straightness, parallelism, flatness, squareness, and machine geometry. When it comes to efficiently aligning machines in two axes, the BlueLEVEL-2D is the perfect solution. ...

... The SQ-SEN-200 is an omni-directional ultra low power tilt & vibration sensor manufactured by Signal Quest. This device functions similarly with a normally closed switch that chatters open and closed when vibrated or tilted. Moreover, it is a sensor which ...

Inclination: 10 °
Resolution: 1 °

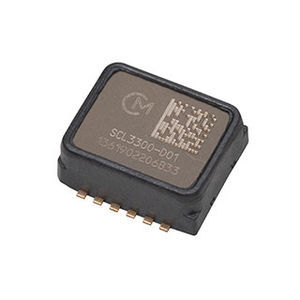

... Highest accuracy 3- axis inclination measurement is available with Murata's SCL3300. This sensor also features direct inclination angle output making it a perfect choice for variety of different use cases and applications. The best shock ...

Inclination: -30 ° - 30 °
Resolution: 0.001 °

... ZCT-CX300 in place inclinometer system is a high-precision monitoring system developed by Shanghai Zhichuan Electronic Technology. It is wide range measurement, stable performance, solid and easy maintenance. The sensor probe of it ...

Inclination: -90 ° - 90 °
Resolution: 0.05 °

... The SVM30 series intelligent vibration tilt sensor adopts low noise, low drift and low power consumption 3- axis MEMS accelerometer, which can achieve high frequency and low noise performance, providing high resolution ...

Inclination: 0 ° - 360 °
Resolution: 0.01 °

... SSI is available with one or two measurement axes. The inclinometer working principle is based on a micro machined silicon capacitive transductor (developed with MEMS technology). Utilizing gyro-compensated MEMS technology, the sensor ...

Inclination: -60 ° - 60 °
Resolution: 0.003 °

... The 0717-4318-99 electrolytic tilt sensor (also sometimes called an electronic tilt sensor) gives a wide-range measurement up to ±60° with high accuracy of ±0.1° in two axes (dual- axis measurement). It has an industrial-grade, ...

Inclination: -180 ° - 180 °
Resolution: 0.01 grad

... using MEMS technology. The INC4 provides single- axis and dual- axis inclination measurement. The sensor is available with Analog and Digital output options. Technology – High-precision inclination sensor ...

Inclination: -180 ° - 180 °
Resolution: 0.1 °

... High performance MEMS based inclinometer (tilt sensor) Perfectly applicable with CANopen and SAE-J1939 Micro-Processor mounted for stable sensing and data processing Customized specifications for applying various industry areas CE/FCC/ROHS To ...

Inclination: 2 ° - 80 °
Resolution: 0.001 °

... cast aluminium sensor housing (IP65) with two integrated sensors for measuring inclinations and/or accelerations along two axis. As well as the sensors, the box contains two independent signal conditioners, each with a 4...20mA, 2-wire ...

Inclination: -90 ° - 90 °
Resolution: 0.01 °

... - Low cost, high performance, suitable for batch application - 50Hz refresh rate, 10Hz response frequency - ±0.5% Cross- axis error, ±0.15° or ±0.07°accuracy - Available to horizontal, vertical, headstand, etc installation method - ...

Inclination: -90 ° - 90 °

... The LSO is a high-precision gravity-referenced servo inclinometer manufactured by Sherborne Sensors. The unit is specifically designed for various industrial and military operations. There are available models in various angular ranges, ...
