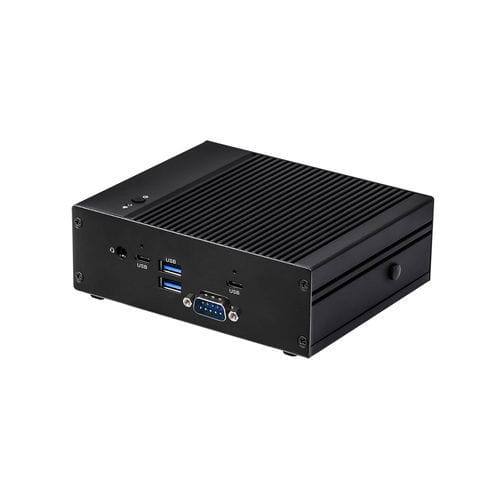

Expansion PC iBOX-N97 R2

boxwall-mountedDIN rail

Chipset - SoC BIOS - AMI SPI 256 Mbit Graphics Controller - Intel® UHD Graphics HDMI - HDMI 2.0b Max resolution up to 4096x2160@60Hz DisplayPort - DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz MultiDisplay - Triple-Display (Included 2 outputs from Type-C) Expansion Slot M.2 - 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless Audio Interface - Realtek ALC256, High Definition Audio Ethernet Controller/ Speed - LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps Front I/O Audio - 1 (headphone & microphone jack) Rear I/O Ethernet - 2 x 2.5 Gigabit LAN DC Jack - 1 Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 1 x 19V/65W Power Adapter Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp - -20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals) Storage Temp - -40° C ~ 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90% Mechanical Construction - Aluminum housing Dimensions (L x W x H) - 135 x 110 x 44.5mm (5.31" x 4.33" x 1.75") Weight - Net Weight: 0.7kg Others TPM - TPM 2.0 onboard IC Certifications - CE, FCC Packing List - 1 x 19V/65W Power Adapter 1 x Wall mount kit
