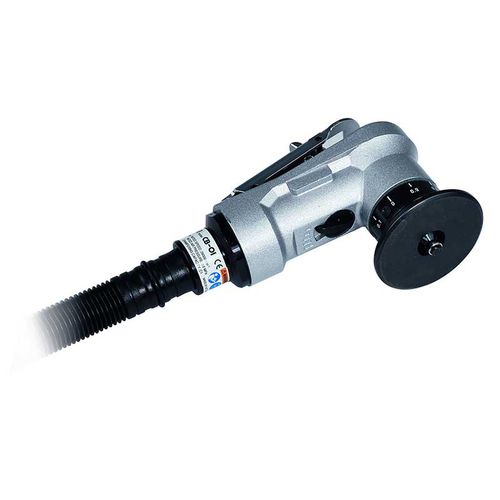

Pneumatic chamfering and deburring machine ASO 300

hand-heldcontourstraight edges

The pneumatic, handheld Chamfering Machine is an ideal solution for deburring straight edges and contours. Due to its lightweight and ergonomic structural shape, it exhibits easy handling and operation. Application - For large and heavy workpieces - Chamfering of flat workpieces made of steel, max. 1,000 N/mm², aluminium, brass, copper, plastics, acrylic glass, wood and much more - Pre-dominantely for contours but also for straight edges - For rounding edges - Bores with Ø>6 mm can be processed Options - Radius inserts R1 - R2 mm - A special roller bearing for sheet thickness between 2-5mm - Plastic disk for scratch-free surfaces Features - Absolutely burr-free cutting - Clean and consistent processing of component parts and series - Fast convert or replace of the carbide-cutting inserts - Suitable for continuous operation Delivery contents - Hook spanner ø 58 - 65 mm - Torx key T 9 - Setting gauge - Cutter head with cutting inserts - Compressed air hose without nipple - Operating instructions Further accessories can be found in our Accessory Catalogue.
