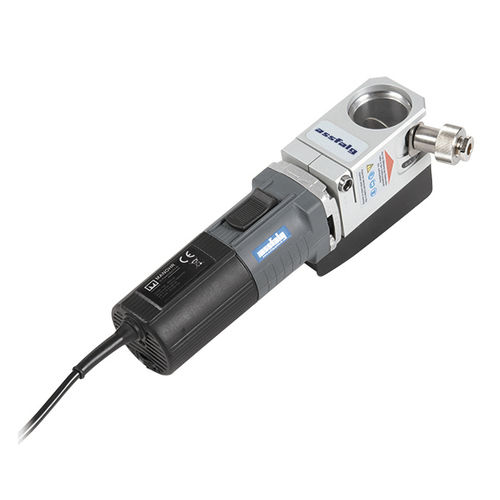

Electrode grinding machine Neutrix

manually-controlledportable

The Neutrix is a small, lightweight and therefore portable grinding device that can accurately grind reproducible quality grinds on tungsten electrodes centrically in the longitudinal direction. A stand can be mounted for workshop use. Features - Integrated dust exhaust - Stepless adjustment of the point angle 15° - 180° - Eccentric disk enables 3-fold utilization of the diamond disk - Short grinding time - only 0.3 mm consumption per grinding process due to grinding gauge - Speed control for optimum grinding speed - Grinding tungsten electrodes up to 15 mm is possible with special collets Application - Tungsten electrode resharpening for TIG, plasma, and orbital welding Options - Stand S - Pedestal SW (with toll deposit) - Neutrix S with fixed pedestal and large dust filter Delivery contents - Allen key 2 and 4 mm - Transport case - Electrode holder with collet sections ø 1.6 / 2.4 / 3.2 mm - Disposal bag for single-use fi lters - Open-ended wrench SW 13/17 mm and 14/17 mm - Diamond grinding disk - Operating instructions
