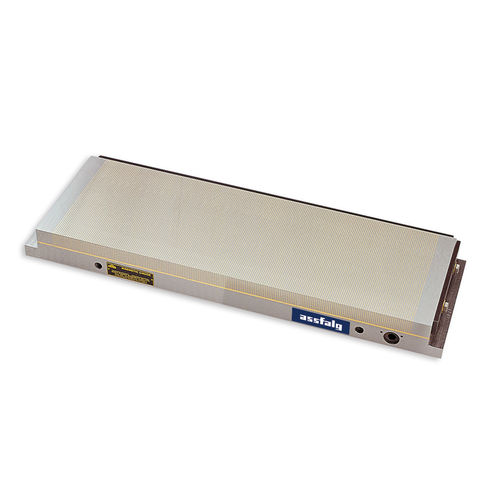

Permanent magnet magnetic chuck Microfine

rectangularfor grindingfor milling

The Microfine is an extremely economical Permanent Magnetic Chuck which can be manually switched. It has a very flat magnetic field and is suitable for grinding and EDM. It is used for our Microsine. Application - Universal use, especially for grinding and EDM, but also for finish milling - Especially for small and thin, but also for thick workpieces if surface is clean and even Features - Design with low height, but high adhesive force - The contact surface can be machined up to 2mm and drilled up to max. 8 mm depth - Liquid-tight - Can be switched ON/OFF mechanically - Workpieces can be clamped stress-free and fast - 5-side processing, as only one side is magnetically clamped - Low magnetic penetration depth because of a flat magnetic field due to fine pole pitch – not very good for bridging air gaps - Adhesive force: 80 N/cm2 with pole pitch 1.5 + 0.5 mm
