Automatic osmometer OsmoTouch 40

carouselfor biological samplesfor pharmaceutical applications

Product overview

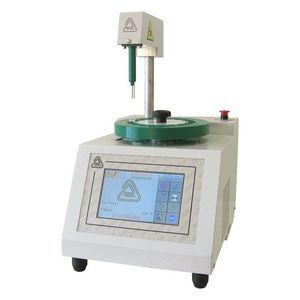

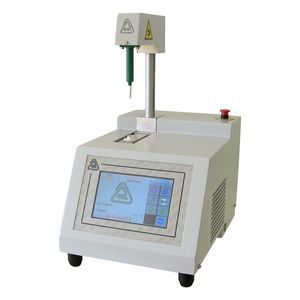

OsmoTouch 40 is an automatic osmometer with a 40-place carousel autosampler for rapid determination of the cryoscopic point variation (osmolality) in biological fluids, pharmaceutical samples and other solutions. The instrument features a full-colour 7" touchscreen, real-time freezing-curve visualization, stable memory for over 4,000 results, PC software for data handling (CryoSoft Touch), USB ports for data export and firmware updates, and optional barcode/QR-code reader support. Models offer functions compliant with FDA 21 CFR Part 11 including Audit Trail and two password levels for electronic records and signatures.

Applications and main uses
Compact and robust, OsmoTouch 40 operates at ambient temperatures up to 36°C. It is suitable for pharmaceutical, cosmetic and homeopathic quality control, clinical laboratories, hospitals and R&D labs. The instrument is particularly suited to the analysis of semi-viscous samples.

New functions and advantages

• Real-time graph of sample temperature during each analysis
• Ability to add a 20-character alphanumeric ID to each sample
• Optional USB barcode and QR-code reader for fast sample identification
• Results displayed in different colours for quick detection of anomalies or critical values
• Features compliant with FDA 21 CFR Part 11: Audit Trail, two-level password setup (administrator and user), obscured passwords, results with date, time and username (electronic signature) and unmodifiable results to prevent tampering
• Memory for 3 different calibration curves based on preferred analytical ranges
• Stable memory for up to 4,000 results
• Easy download of test results to a USB pen drive
• Firmware updates via USB pen drive
• Real-time PC monitoring or quick download of results to PC via CryoSoft Touch
• Immediate visualization of error messages

Notes
Warm-up time: about 5 minutes.

Technical specifications

• Sample capacity: up to 40 samples
• Display: full-colour 7" touchscreen
• Bath: Peltier cells controlled by software
• Operating ambient temperature: +5°C to 36°C
• Automatic calibration
• Lash and agitation width controlled by software
• Sample volume: 50 to 200 μL
• Test duration: about 2–3 minutes per sample (0 to 900 mOsm/Kg)
• Warm-up time: about 5 minutes
• Analytical range: 0 to 3,000 mOsm/Kg
• Resolution: 1 mOsm/Kg
• Repeatability and reproducibility: ±2.5 mOsm/Kg (0 to 600 mOsm/Kg) or ±0.5% of the value (600 to 3,000 mOsm/Kg)
• Connections: 2 × USB ports for data download, firmware updates and optional barcode/QR reader; 2 × RS232 ports for thermal printer and PC
• Power consumption: max. 150 W
• Dimensions: 330 × 610 × 360 mm (w × d × h, head down)
• Net weight: 20.5 Kg
