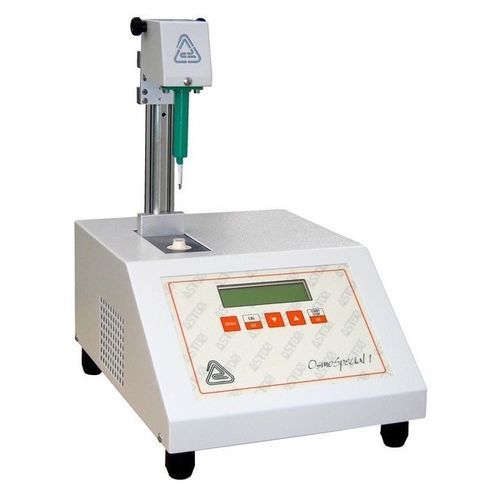

Semi-automatic osmometer OsmoSpecial 1

single samplefor biological samplesfor pharmaceutical applications

Product overview
OsmoSpecial 1 is a semiautomatic single-sample osmometer for rapid determination of freezing-point depression (osmolality) in biological and pharmaceutical liquid samples. Results are displayed in mOsm/kg and °C; the instrument is intended for clinical, research and pharmaceutical laboratory use.

Applications

• Clinical chemistry and laboratory quality control
• Pharmaceutical formulation and quality control
• Research on biological fluids (plasma, serum, urine)

Embedded media
Integrated demonstration/manual video available (YouTube embed) illustrating single-sample operation and routine handling.

Technical features

• Single-sample semiautomatic operation with disposable plastic tubes (50–200 µl)
• Peltier-cell temperature bath controlled by software (no cooling liquid)
• Induced ventilation and software-controlled agitation
• Automatic calibration; warm-up ≈5 minutes; analysis time ≈3 minutes per test
• Results in mOsm/kg and °C

Technical specifications

• Sample capacity: single sample
• Sample volume: 50–200 µl (disposable plastic tubes)
• Measurement range: 0–1500 mOsm
• Resolution: 1 mOsm/kg
• Repeatability/reproducibility: ±2 mOsm (0–600 mOsm) or ±0.5% (600–1500 mOsm)
• Operating ambient temperature: +5 °C to +36 °C
• Power supply: 110/220 V, 50/60 Hz, 100 W
• Dimensions (w×d×h, head up): 285×380×450 mm
• Net weight: ≈ 10 kg

Laboratory benefits

• Compact footprint and short analysis time improve sample throughput
• Minimal maintenance due to absence of cooling liquid
• Single-sample format suited to low-volume or urgent tests

Ordering and accessories

• Supplied with user manual and basic accessories
• Compatible disposable plastic tubes (50–200 µl) available separately
