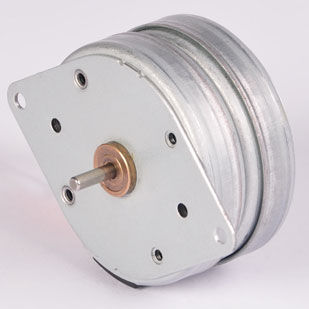

AC motor ASM 0518single-phasesynchronous24 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC, single-phase
- Type
- synchronous
- Voltage
- 24 V, 220 V
- Power
3.1 W, 3.2 W
(0.004 hp, 0.004 hp)- Torque
Max.: 0.03 Nm
(0.0221 ft.lb)Min.: 0.026 Nm
(0.0192 ft.lb)- Rotational speed
500 rpm, 600 rpm
(3,141.59 rad.min-1, 3,769.91 rad.min-1)
Description
Shaft speed 500 and 375 rpm by 50 Hz
Voltage from 1~24 to 1~230 V
Protection class IP 41
Maintenance-free
Insulation class E
Efficiency up to 0,77
Combinably with spur, planetary,
flat and worm gear
