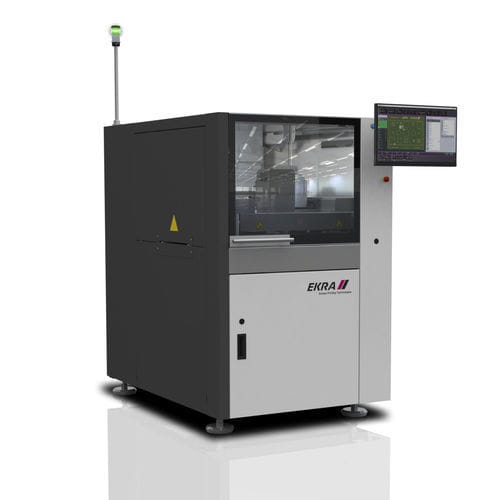

Screen printing machine HYCON XH2

color

The XH2 screen printing system was specially developed for printing on hybrids and offers highest precision and maximum flexibility. Technology Repeat accuracy: ± 12.5 µm @ 6 Sigma Print format: up to 250 x 250 mm 4-column guidance of the entire printing unit for extreme accuracy and repeatability Flexible and adaptable to different requirements and production processes Simplex user interface: clear user guidance and user-friendliness Extended Automation Less waste and higher product quality Ability to produce a wide range of products without having to reconfigure/retool the machine every time you change Flexible screen and stencil holder for all standard screen/stencil sizes up to a maximum of 450 x 450 mm Data Intelligence Seamless data exchange through standardized interfaces such as IPC-HERMES-9852, IPC-CFX, OPC UA Developed for SynapticaOS Product Pool: central data storage of print programs Offline programming for creating and editing machine programs at a separate workstation Remote Cockpit Sustainability Less waste and higher product quality Smaller footprint thanks to compact design
