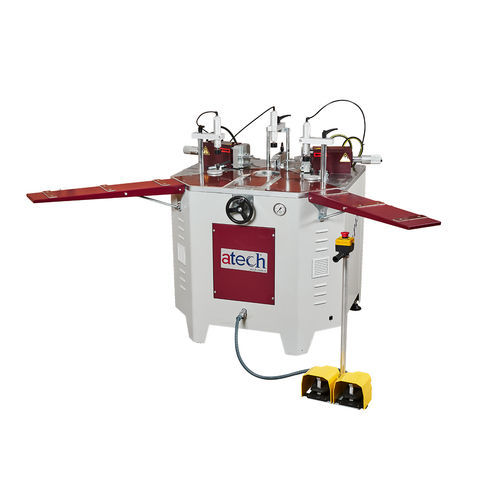

Aluminum profile corner crimping machine APIS-1

automatichydraulicfoot-operated

• Corner joining of aluminium profiles at 90° • Clamps operate pneumatically. The crimping knives are hydraulic • Depth of adjustment can be precisely adjusted depending on profile thickness • Height of crimping knives, advancing of hyraulic cylinders and profile stop can be milimetrically adjusted • The centering plate and the stop fence return to start position after crimping automatically • Powerful hydraulic pump (5000kg x 2pcs) • Dual foot pedal for crimping action and pneumatic clamps • Machine surface is equipped with Polyamid sheet to avoid scrarching of profile • Max crimping force 5000 Kg • Knives stroke 65mm • Bracing clamps stroke 130 mm • Max crimping height 130 mm Horizontal operating range 130 mm • Dimensions 91Ox1250x1050 mm Engine Power : - 1.6kW 50/60Hz Dimensions : - W:95 cm L:130 cm H:115cm Total Weight : - 480 kg Air Pressure : - 6/8 Bar Max: 100 Bar • 2 pcs.Conveyor • 2 crimping knives of each size 3 mm, 5 mm • Custom crimping knives set • Knife Cassette System
