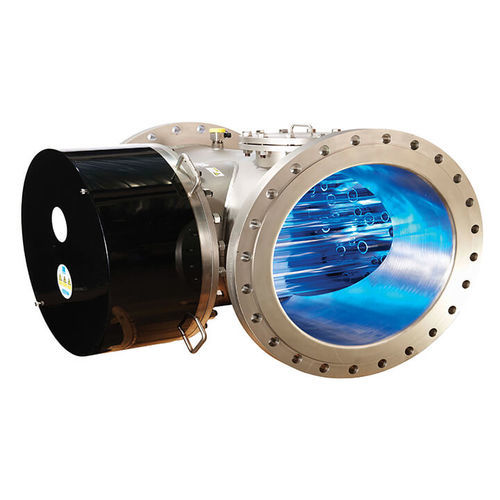

UV disinfection unit SW series

for wastewater treatmentwaterfixed

The SW range provides the very latest in medium pressure UV lamp technology. The specially designed in-line UV reactors provide optimum flow distribution and hydraulic performance. The SW range of medium pressure UV systems offer a state-of-the-art solution for a wide variety of water treatment applications, treating capacities of 10 m3/hr to more than 2,000 m3/hr in a single, high output, low footprint UV system. FEATURES • Chemical free, green disinfection solution • 2 to 18 multi-lamp configurations • High capacity treatment up to 2,000 m3/hr • 9,000 hour lamp life and 5 year quartz life • Automatic power stepping 100% – 30% power • Hydraulically optimised low head-loss design • High disinfection efficiency – 1 to 5 log BENEFITS • Dry UV monitors and temperature probes • Robust, chemical free automatic wiper system • Lamp changes without removing wiper motor • Wiper rings can be replaced without removing wiping carriage from chamber APPLICATIONS Treatment of Wastewater and Process Water in Municipal, Industrial and Oil & Gas applications
