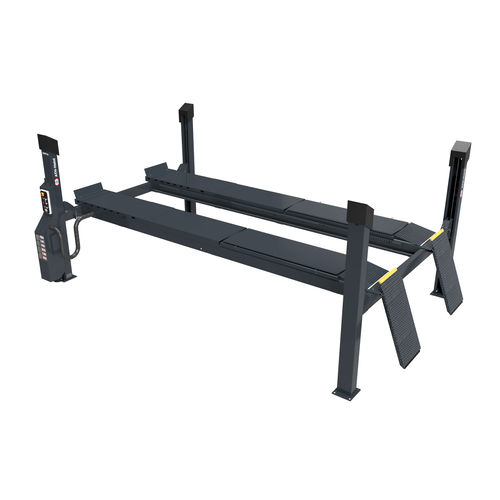

4 post lift ATH-Four Lift 55A
electro-hydraulic400Vfor car

4 post lift
4 post lift
4 post lift
4 post lift
4 post lift
4 post lift
4 post lift
Add to favorites
Compare this product


Characteristics

Type
4 post
Operation
electro-hydraulic
Voltage
400V
Applications
for car
Other characteristics
platform
Lifting height

Min.: 246 mm (9.685 in)

Max.: 1,890 mm (74.409 in)

Description

Description Highest quality: High-precision manufacturing by laser cutting and robotic welding Long-lasting technology: Robust and less sensitive hydraulic drive, almost maintenance-free Flexible use: For passenger cars and vehicles with long wheelbase; platform length 5,19 m, one platform is continuously adjustable Great variability: Can be used universally with flat platforms and rails for an optional rolling jack High functionality: Perfect lift for wheel alignment with recess for turn plates in the front and already installed sliding plates in the back; also perfect for headlamp beam setting due to the notch system for adjusting the platforms Comfortable working: Only drive-on and repair, no lifting arms Easy drive-on: 2-piece drive-on ramps hinged, perfect for lowered vehicles Simple working: Lifting and lowering with push button control Maximum security: Pneumatic unlocking of notches, slack rope protection, emergency lowering system for lowering in case of power failure, CE stop and signal sound Modern design: Powder-coated lift in attractive anthracite gray Perfect lift for automotive repairs, wheel alignment and headlamp beam setting
