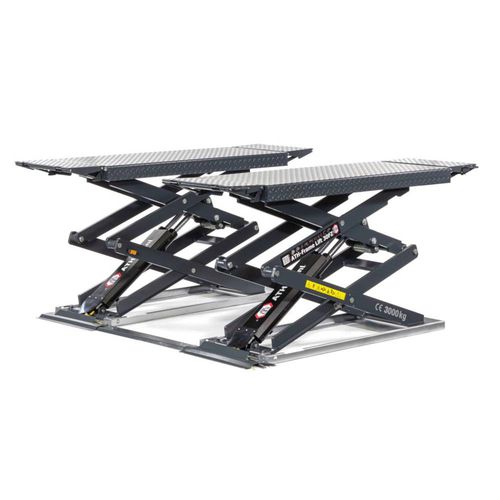

Double-scissor lift ATH-Frame Lift 30FZ
3 tonelectro-hydraulic400V

double-scissor lift
double-scissor lift
double-scissor lift
double-scissor lift
double-scissor lift
double-scissor lift
double-scissor lift
Add to favorites
Compare this product


Characteristics

Type
double-scissor
Maximum load
3 ton
Operation
electro-hydraulic
Voltage
400V
Applications
for car
Lifting height

Min.: 116 mm (4.567 in)

Max.: 1,900 mm (74.803 in)

Description

Double-scissor lift ATH-Frame Lift 30FZ Double-scissor lift for surface mounting or in-ground installation (with optional accessory), capacity 3000 kg Description Highest quality: High-precision manufacturing by laser cutting and robotic welding Long-lasting technology: Robust and less sensitive hydraulic drive, almost maintenance-free Flexible use: Suitable for surface mounting or in-ground installation (with optional accessory) Precise lifting and lowering: The double master and slave system ensures an even lifting and lowering of the scissors; the integrated light barrier permanently controls the synchronization of the lift Powerful lifting: With mechanical rocker arm system, in order to lift with full power Easy drive-on: Low drive over height of only ca. 116 mm, runways with lockable drive-on ramps Simple working: Lifting and lowering with push button control, non-contact limit switches integrated in the hinges Maximum security: Hydraulic double locking system for lowering (neither safety locking-system nor compressed air necessary), emergency lowering system for lowering in case of power failure, CE stop and signal sound Modern design: Powder-coated lift in attractive anthracite gray Perfect corrosion protection: Partial galvanizing and double powder coating Perfect lift for painting jobs and bodywork, brakes and tire service
