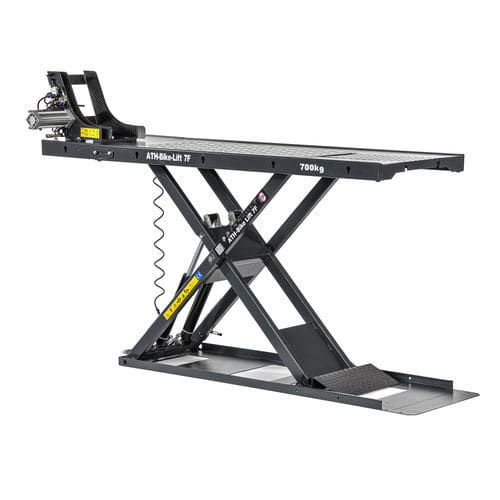

Scissor lift ATH-Bike Lift 7F
electro-hydraulicfor motorcyclesplatform

scissor lift
scissor lift
scissor lift
scissor lift
scissor lift
Add to favorites
Compare this product


for motorcycles
Other characteristics
Lifting height

Min.: 150 mm (5.906 in)

Max.: 1,200 mm (47.244 in)


Motorcycle lift ATH-Bike Lift 7F Stationary, electrohydraulic bike lift with automatic feed mechanism for the ramp Description Highest quality: High-quality and rugged electrohydraulic Motorcycle lift for professional garages Long-lasting Technology: Low-wear and almost maintenance-free hydraulic technology Comfortable working: avoiding tripping hazards by automatically ramp’s moving-in when the platform is lifted Mechanical release of the safety catches: lowering into the safety catches; Mechanical locking catch, to be able to park the weight without hydraulic pressure Powerful lifting: Hight lifting power from the beginning No electrical limit switches installed, protective sleeve on the hydraulic hose. Low space requirement: compact and fixed Maximum security: emergency lowering system for lowering in case of power failure Removable plate for working freely on the rear wheel, chain or drive Shaft Installed Aluminum plate: specially designed to accommodate mini motorcycle lifters Option: freewheel plate, wheel support with crank handle, Pneumatic wheel holder, Mini-Motorcycle lifter, ATV adapter set Electrical connection 230V, 50 Hz, 16A


No catalogs are available for this product.
