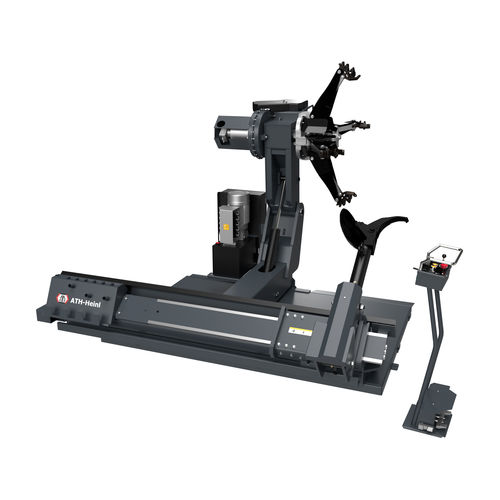

Truck tire changer ATH 7258for busesfor agricultural vehiclesfor tractors
Add to favorites
Compare this product
Characteristics
- Applications
- for automobiles, for trucks, for buses, for agricultural vehicles, for tractors
- Type
- semi-automatic
- Structure
- horizontal
- Other characteristics
- electro-hydraulic
- Clamping diameter
Max.: 2,600 mm
(102 in)- Max wheel diameter
2,600 mm
(102.4 in)- Max wheel width
1,500 mm
(59 in)
Description
• - Electro-hydraulic drive for lifting, lowering and clamping with four clamping claws; electric rotation drive movement, hydraulic longitudinal movement of the slide
• - Assembly arm and complete clamping arm device can be moved lengthways hydraulically, with automatic rotation and fold option
• - Two working speeds (5 and 10 rpm)
• - Wheels capacity up to 2.600 mm diameter
• - Movable control unit equipped with joysticks and foot pedals
• - Ideally suited for truck and bus wheels, agricultural equipment and large construction machines up to 58“ ,with optional accessories also for aluminium rims
Catalogs
ATH SmartKat EN
108 Pages
