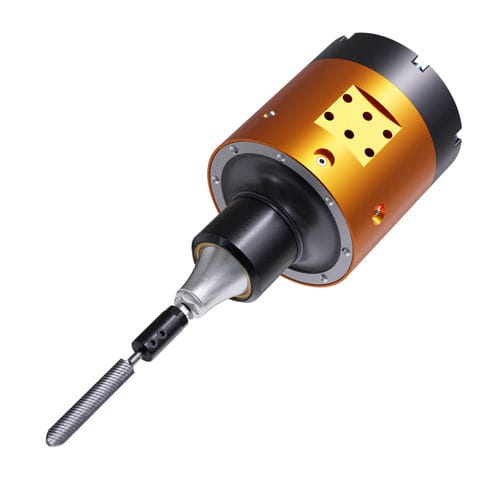

Pneumatic deburring tool CRT-12-5

for metalsfor plastics

Product overview
Designed for removal of parting lines and flash in confined spaces, the CRT-12-5 reciprocating file provides pneumatic reciprocating motion with minimal chatter and vibration. Its built-in compliance and adjustable cutting force simplify robot integration and reduce cycle time compared with manual deburring.

Key features

• Specifically for removal of parting lines and flash in tight areas
• Pneumatic reciprocating drive with oiled air
• Deburrs edges and reduces cycle time compared with manual operation
• Built-in compliance reduces robot programming requirements
• Cutting force adjustable on the fly
• Mountable to robot arm side or rear patterns
• Accepts a range of industrial finishing media and file shapes
• Minimal chattering and vibration

Specifications

• Model number: CRT-12-5
• Air connections (compliance): 5/32 in (4 mm)
• Air connections (spindle): 3/8 in (10 mm)
• Collet: 5 mm
• Compliance force range: 18 N – 62 N (4–14 lbf)
• Compliance travel at collet: 8.1 mm (0.32 in)
• Recommended compliance travel: 4.1 mm (0.16 in)
• Max speed: 12,000 strokes per minute (SPM)
• Motor type: Pneumatic reciprocating
• Air consumption (no load): 1.5 CFM
• Air consumption (under load): 6 CFM
• Mounting feature: Side and rear patterns
• Weight: 3.1 kg (6.8 lb)

Installation & integration

• Side or rear mounting patterns for robot-arm installation
• Built-in compliance reduces need for complex robot programming
• Cutting force adjustable during operation for process tuning
• Compatible with common robotic end-effectors and fixtures

Applications

• Robotic deburring and finishing of castings and molded parts
• Removal of parting lines, flash and edge burrs in confined geometries
• Replacement of manual deburring operations to increase throughput
