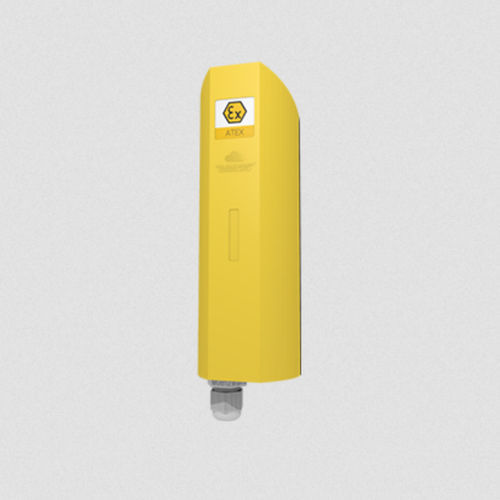

Energy consumption datalogger MR2-EX series

USBLoRaWAN

The MR2-EX allows the remote reading of one or two meters with pulse type output (dry contacts). The cycle time is configurable as well as the number of samples per message transmitted. For example, in order to save energy, the meter index can be read every 10 minutes and the 6 indexes can be transmitted only once per hour. This information is transmitted by radio and on the Sigfox or LoRaWAN operated networks or in local mode with a Gateway installed on the site. The configuration can be configured locally by an internal USB link or remotely by Downlink from the network. Compatible with the computer and mobile versions of the ATIM Cloud Wireless web platform, the data visualization, the remote parameterization of the sensor and the configuration of alarms according to predefined thresholds are made possible in a few clicks. A connection cable to the standards of the most common gas meters is available: REF: CAB/MTRGAZ1 The installation and the handling of the solution are very simple and are carried out in less than 10 minutes: Plug & Play. Commonly used in cities, industry and connected buildings, the ACW-MR2-EX is suitable for many applications such as : -Monitor the meter index of different gas, water or electricity meters, located in ATEX zones (Zone 2) -Monitor the consumption of water or electricity or gas: energy savings Description MONITORING - 2 pulse counting inputs 2 inputs configurable in ToR mode CERTIFICATION - ATEX zone 2 AUTONOMY* - 7 years + with 1 message per hour BATTERY - 1 SAFT Lithium battery ATEX certified (interchangeable) BOX - IP65 MODES - Periodic broadcasts & datalogging
