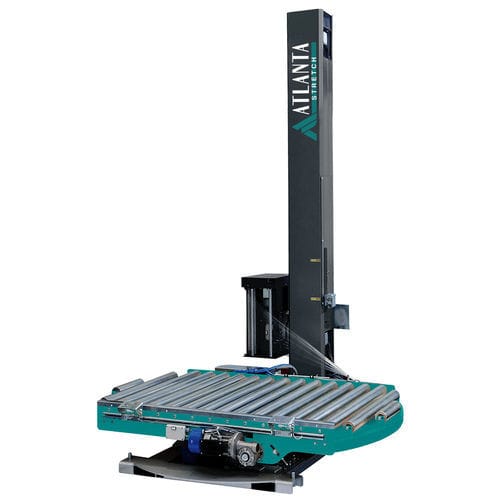

Turntable stretch wrapping machine Mytho A
automaticwith electromagnetic brakingindustrial

Turntable stretch wrapping machine - Mytho A - Atlanta Packaging UK LTD - automatic / with electromagnetic braking / industrial
Turntable stretch wrapping machine - Mytho A - Atlanta Packaging UK LTD - automatic / with electromagnetic braking / industrial
Turntable stretch wrapping machine - Mytho A - Atlanta Packaging UK LTD - automatic / with electromagnetic braking / industrial - image - 2
Turntable stretch wrapping machine - Mytho A - Atlanta Packaging UK LTD - automatic / with electromagnetic braking / industrial - image - 3
Add to favorites
Compare this product

Characteristics

Type
turntable
Operating mode
automatic
Braking type
with electromagnetic braking
Product applications
pallet, carton, industrial
Other characteristics
stretch film, with conveyor
Height

3,066 mm
(121 in)

Width

3,570 mm
(141 in)

Length

6,180 mm
(243 in)

Maximum wrapping height

2,100 mm
(82.68 in)

Maximum pallet length

Max.: 1,200 mm
(47.24 in)

Min.: 800 mm
(31.5 in)

Maximum pallet width

Max.: 1,200 mm
(47.24 in)

Min.: 600 mm
(23.62 in)

Rotational speed

Max.: 15 rpm
(94 rad.min-1)

Min.: 5 rpm
(31 rad.min-1)

Voltage

400 V

Capacity

Max.: 60 p/h

Min.: 0 p/h

Description

• Easy transport and installation • Compact, space-saving machine suitable for small workplaces • Maximum flexibility thanks to multiple available options • Limited space complete automatic solution Mytho A “mast version” is a high performance wrapping machine, specially designed for those situations where high throughput is required and installation space is limited. This inline wrapping machine has been developed in accordance with the latest technical standards for mechanical, electrical and software design. The standard SIEMENS S7-1200 PLC with incorporated profinet, ensures that this machine will easily be integrated with your packaging line. The combination of low maintenance costs and easy installation ensure this machine is an inexpensive solution for any industrial stretch wrapping requirement.
