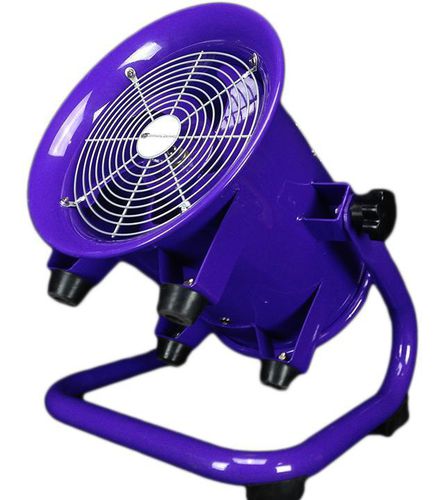

Axial fan ABAF-12-110mobiletubelow-pressure
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Type
- mobile
- Applications
- tube
- Other characteristics
- low-pressure, high-flow
- Air flow
Max.: 4,619.61 m³/h
(76.994 ft³/h)Min.: 0 m³/h
(0 ft³/h)
Description
Atlantic Blowers' ABAF-12-110 Single Phase Axial Fan can be used for various low pressure, high airflow applications. The ABAF-12-110 produces a maximum flow of 2719 CFM. The maximum pressure is 1.8 inH2O. The ABAF-12-110 has a power output of 0.75 HP (0.55 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is 110V-120V. Measuring at a distance of 3 ft. the fan will produce a noise level of 69 dbA. The impeller diameter is 12".
