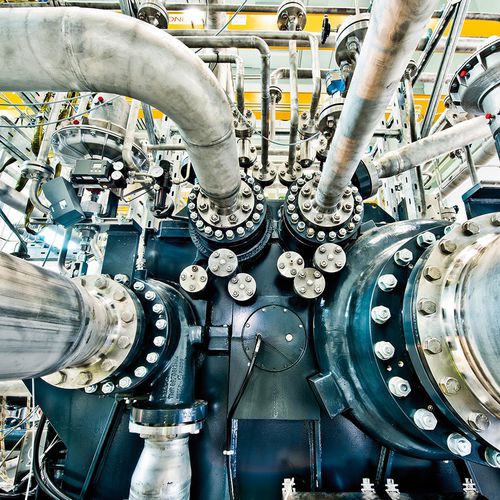

Air compressor GT series
gasstationaryelectrically-powered

air compressor
air compressor
air compressor
Add to favorites
Compare this product

Characteristics

Type
air, gas
Portability
stationary
Power source
electrically-powered
Technology
centrifugal
Lubrication
lubricated
Other characteristics
compact, low-pressure, multi-stage
Applications
industrial
Pressure

Max.: 205 bar (2,973.27 psi)

Min.: 0 bar (0 psi)

Flow

Max.: 500,000 m³/h (17,657,333.36 ft³/h)

Min.: 250 m³/h (8,828.67 ft³/h)

Power

45,000 ch (45,000 hp)

Description

GT-Series centrifugal compressor for air and process gas applications Atlas Copco GT-Series integrally geared centrifugal compressors feature innovative gearbox and impeller designs for air and process gas applications up to 205 bar. Integrally geared compressor As the industry’s most efficient and compact gear design, integral gear technology delivers multiple-speed capability that allows each compression stage to run at the optimum speed, giving the best efficiency possible. State-of-the-art gearbox design Utilizing multi-stage compression with as many as eight stages on a single gearbox, our centrifugal GT-Series compressors can be configured to handle combined processes in one cycle. Full API compliance The GT Series is manufactured according to the rigorous standards of the American Petroleum Institute (API), namely API 617, Chapter 3 (gas); oil systems according to API 614. Technical description GT-Series centrifugal compressor Atlas Copco Gas and Process has designed and commissioned thousands of centrifugal compressors worldwide. From air separation to oil and gas processes our compressors are built to boost efficiency and productivity. Designed in a compact package with minimum installation time, GT Series compressors handle flow volumes up to 480 000 m3/h and pressure of up to 205 bar.Our GT-Series compressor are configured up to eight stages, with required driver powers up to 37 MW. Driven by integral gear technology, GT Series centrifugal compressors increase your productivity with the industry’s most efficient and compact mechanical drive design.
