Refrigerated compressed air dryer F series
triple-levelcompact

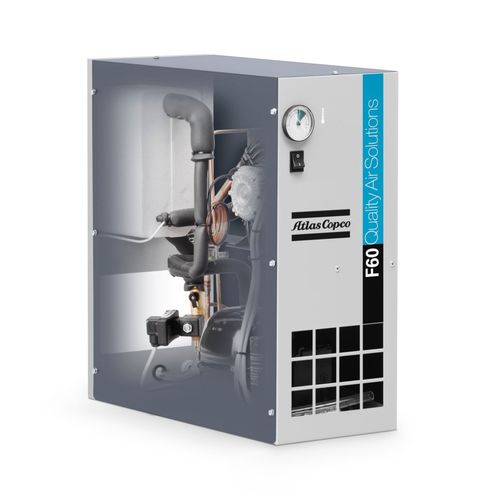

Refrigerated compressed air dryer - F series - Atlas Copco Compressors - triple-level / compact

Refrigerated compressed air dryer - F series - Atlas Copco Compressors - triple-level / compact - image - 2

Add to favorites

Compare this product

Characteristics

Technology

refrigerated

Number of stages

triple-level

Other characteristics

compact

Capacity

Min.: 18 m³/h
(635.66 ft³/h)

Max.: 468 m³/h
(16,527.26 ft³/h)

Working pressure

13 bar, 16 bar
(188.55 psi, 232.06 psi)

Motor power

Min.: 126 W
(0.17 hp)

Max.: 1,242 W
(1.69 hp)

Operating temperature

35 °C
(95 °F)

Weight

Min.: 19 kg
(41.9 lb)

Max.: 80 kg
(176.4 lb)

Dew point

Min.: -70 °C
(-94 °F)

Max.: 50 °C
(122 °F)

Description

Compact, low maintenance dryers that are compatible with most compressor technologies and applications Low maintenance Long service intervals Easy access to key components Quick installation & easy operations Compact footprint of only 0.13 m2 Simple vertical design Plug-and-play installation Dewpoint indicator to verify air quality Cost savings Efficient cooling system ensures low energy cost Fewer repairs to tools, machines and pipework Applications The air that leaves a compressor reaches 100% humidity. Aftercoolers and drains are the first line of defense against water in your system. Our dryers eliminate the residual humidity to achieve absolutely dry air for applications that require advanced air quality
