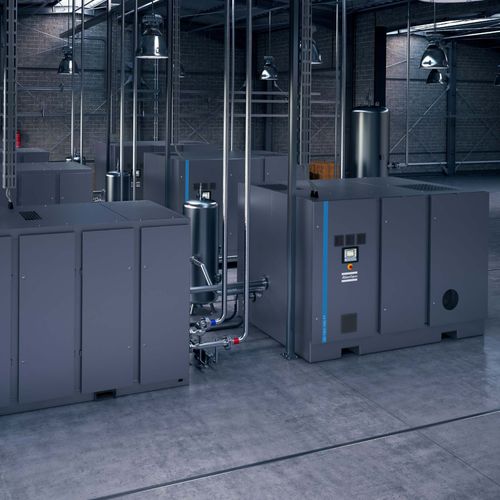

Piston compressor ZD series
airnitrogenelectrically-powered

piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air, nitrogen
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
industrial, for food applications
Applications
for pharmaceutical applications, for automobiles, recovery, for the gas industry, for PET bottles
Other characteristics
high-efficiency, high-pressure, energy-saving, medium-pressure, multi-stage, with supercharger
Pressure

Max.: 42 bar
(609.16 psi)

Min.: 25 bar
(362.59 psi)

Flow

Max.: 4,057 m³/h
(143,271.6 ft³/h)

Min.: 633 m³/h
(22,354.18 ft³/h)

Power

Max.: 815 kW
(1,108.09 hp)

Min.: 155 kW
(210.74 hp)

Description

High-pressure piston booster ZD in a wide range of industry applications the food and beverage industry the pharmaceutical industry the automotive industry industrial gases PET bottle blowing general industries Our ZD (VSD) hybrid solution combines the advantages of oil-free screw technology, drum type adsorption dryer and the well-known piston booster technology. The result is in 100% oil-free dry air or nitrogen for medium- and high-pressure applications such as: PET Industry : blowing instrument air natural nitrogen vent capturing soot blower air The ZD system is easy to install and easy to use: no complex connections or foundations are required. Z compressor and D booster can be used in parallel or separately reaching different levels of pressure ratios between 25 and 40 bar, which saves you maintenance time and costs. Four-stage air compression with high-efficiency intercooling maximises compression efficiency. More savings can be achieved by adding a Variable Speed Drive (VSD) and energy recovery. Hybrid technology ZD is a combination of a well-known oil-free screw compressor, an adsorption air dryer, and booster technology. Designed to increase compressed air systems' efficiency and reliability. Low maintenance costs Thanks to the hybrid system design, the ZD reduces the number of components which increases component lifetime, extends maintenance intervals, and reduces maintenance costs.
