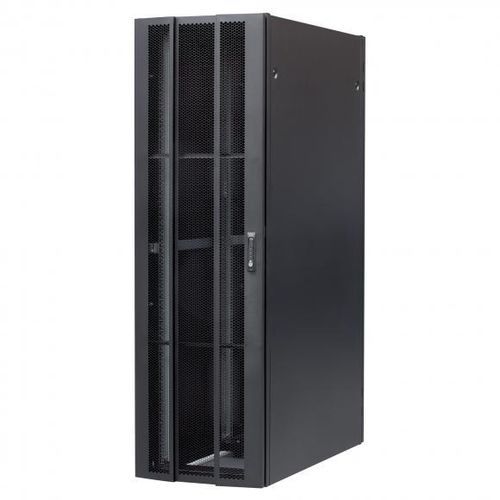

data cabinet / floor-mounted / 19" rack / 42U
Convergence series

{{requestButtons}}

Characteristics

  • Type:

    data

  • Mounting:

    floor-mounted

  • Construction:

    19" rack, 42U, 24U, 47U, hinged door

  • Material:

    metal

  • Other characteristics:

    climate-controlled, reinforced

  • Product applications:

    data center, server

  • Width:

    Min.: 600 mm

    Max.: 800 mm

  • Depth:

    Min.: 1,000 mm

    Max.: 1,200 mm

Description

DIMENSIONAL CHARACTERISTICS

Heights: 24U, 42U, 47U
Widths: 600 to 800 mm
Depths: 1000 to 1200 mm

ADVANTAGES

High payload: 900 kg static and on castors
Seamless aesthetic
Innovative interior design
Perforation of door at 81% for passage of air
Installation of PDUs in zero U from width of 600
Continuously adjustable interior mounts
Continuously adjustable interior mounts
Extractable inter-rack side panels

DESCRIPTION

Pre-configured or tailor-made rack comprising:

2 mechanically welded reinforced top and bottom frames
1 openwork hood with cable entry
4 cylinders adjustable from the inside
4 galvanised interior mounts, continually adjustable or in 25 mm intervals with identification of U with or without openwork oculus door
2 removable side panels
1 reduced height rear panel
1 grounding device

OPTIONS

Colour on request
Code + key door handles
Magnetic handles
PDU brackets
Sealing brush
Universal accessories
Supervision

RANGES

Mounting in contained cold or hot aisle
AREAS OF APPLICATION

IT and telecoms, Integration of servers, Equipment for DATACENTERS, machine rooms, digital factories, centres of calculation, etc.
