Car brake tester BT 410 Box
roller

car brake tester
car brake tester
car brake tester
car brake tester
Add to favorites
Compare this product


Characteristics

Applications
for car
Other characteristics
roller
Power per motor

3.5 kW
(4.76 hp)

Braking force

6 kN

Maximum load

6 t
(6.61 us ton)

Description

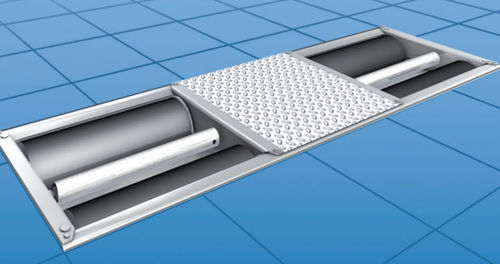

BT 410 Box The brake tester for passenger cars and light commercial vehicles BT 410 Box The brake tester for passenger cars and light commercial vehicles Part Nr.: 01010002N - 4 t axle load, 6 kN brake force - Single-piece galvanized rollerset, including middle cover plates - Electronic measuring system with strain gauges - Switching on and re-start, - Start-up protection for brake rollers - Splash-proof motors (IP54) - Easy exit by self-locking worm gear box Scope of delivery: - Rollerset with premium plastic corundum coating - Visio Box - Testing Software Visio and Dongle - Cable set, length 15 m - Wireless remote control To be used with customer PC set! Option: Brake tester extendable to a complete test lane. Technical data: Permissable axle weight (t) 4 Roller surface Plastic corundum Measuring range (kN) 6 Testing width (mm) 800-2.200 Indicating range (kN) 8 Motor power (kW) 2 x 3,5 Testing speed (km/h) 5 Roller set dimensions (mm) 2.332 x 668 x 265 Roller diameter (mm) 204 Roller length (mm) 700 Visio Box dimensions (mm) 570 x 770 x 210

Catalogs

BT 410 Box
BT 410 Box
2 Pages
