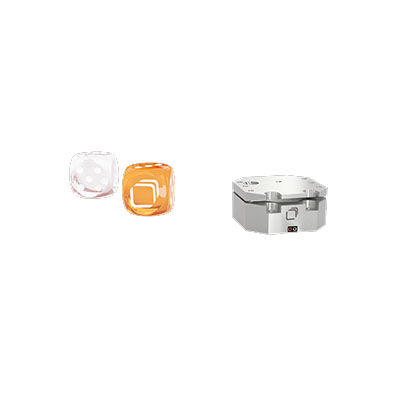

Compact goniometer ANGt101

for high-precision angular alignment

goniometer for Θ-positioning The ANGt101 provides high resolution Θ- positioning for 2" diameter setups. Combined with the ANGp101, the ANGt101 forms the upper positioner of a powerful Euler Goniometer with a common center of rotation. The small footprint and titanium body make it particularly suited for compact setups and magnetically sensitive applications. The positioner is designed for cryogenic conditions (/LT). Titanium is the material of choice for our cryogenic nanopositioners, as it is light, nonmagnetic, and has a coefficient of expansion matching the piezo and other elements of the drive for reliable low temperature performance.
