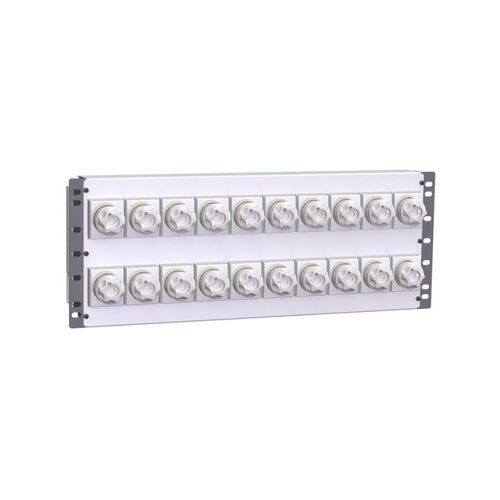

Rack-mount distribution panel AUPUS HE

DCAC

Overview
AUPUS HE 19” load distribution panels are modular rack-mounted panels designed for integration with AUPUS 19” series rack systems. Each 3U or 4U panel provides flexible power distribution and enables optimization of cabinet layouts for industrial and telecom installations.

Highlights

• Available in 19” 3U and 4U rack-mount formats
• Compatible with AUPUS 19” series rack systems

Specifications

• MCB panel configurations: 2-pole + auxiliary and 1-pole + auxiliary
• Supports MCB and Diazed fuse types
• FMU fuse monitoring option and monitoring via VIDI controller
• Default MCB models: Schneider Acti9 iC60N (DC 24–60V, AC 230V); Schneider Acti9 C60H-DC (DC 110–220V)

Technical specifications

• Format: 19” rack-mount, heights 3U or 4U
• Applications: power distribution for modules in industrial racks and control cabinets
• Monitoring interfaces: FMU and VIDI controller integration for remote status and fault reporting
• Voltage compatibility: DC 24–60V, DC 110–220V, AC 230V (dependent on MCB selection)
