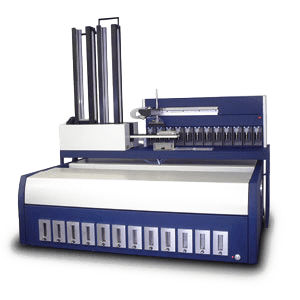

Process screening machine ICR 12000

laboratorystationaryparticle

The ICR 12000 is designed for ultra-high throughput ion channel screening of compound libraries, incorporating multi-channel sampling and enhanced automation features. Based upon the versatility, precision, and sensitivity of Aurora Biomed’s atomic absorption spectroscopy (AAS) instruments, the ICR 12000 is suitable for both ligand-gated and voltage-gated ion channels using cell-based flux assays. With the robustness of Aurora Biomed’s ICR technology, the reader offers high sensitivity for both electrogenic and electroneutral channels and transporters. The incredible 60,000 sample per day throughput of the ICR 12000 enables ion channel researchers to access compound QT liability early in the drug discovery process. Specifications Medium Throughput: Up to 60,000 wells/day 12 Channel: Measures 12 sample at a time Minimum sample volume: 20 µl Accommodation: 96/384-well microplates Footprint: H.120 cm X W.95 cm X D.37 cm Fuel Source: Acetylene / Compressed Air Options: Plate Stacker / Barcode Reader Sensitivity: 0.05 ppm detection limit Precision: < 5% CV
