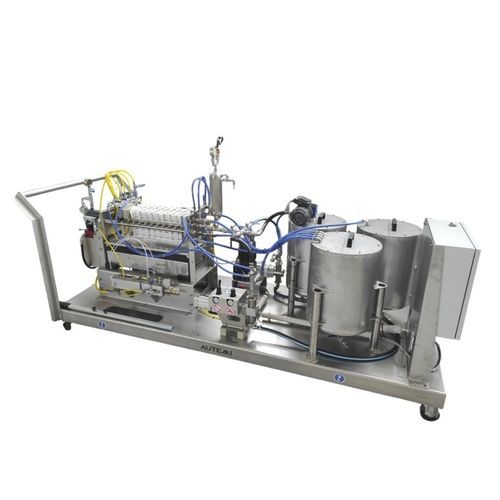

Membrane filter press LAB200-CEFS

automaticelectricfor laboratory

This is the most complete version of Laboratory Filterpress Station designed and builted by Autemi. With this model customer can test every kind of sludge or liquid to filter, because the micro-filterpress is equipped with all the most important auxiliary and devices we can find in a complete industrial filterpress. Provided with high pressure feeding pump (up to 15 bar), sludge tank with electric mixer, water tank for water flushing of the piping and pressure multiplier to provide air pressure up to 16 bar for membrane squeezing. Electric panel allows you also to change the feeding pump flow rate due to VFD installed in order to test which is the best filtration velocity to mantain during the test. A pressure switch installed over the compensation bag turns ON/OFF automatically the feeding pump. Available in 4 different versions: BASIC, STANDARD, PLUS and TOP Each version of LAB200-CEFS pilot filterpress, can mount from 3 to 15 filtering plates. Recessed plates or membrane squeezing plates system depends on the choosen version: only PLUS and TOP version can install membrane squeezing plates Materials available: Polypropylene, AISI 304, AISI 316. Filtering volume depends on the selected materials
