Applications:
- Ideal for windows that need a sun control shade inside an elegant housing but require limited shade positioning.
Description:

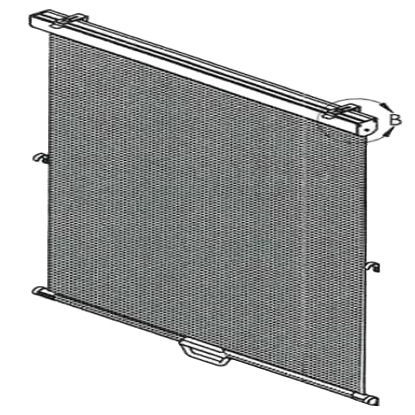

- Roll-type sunshade inside a small aluminum housing for exposed ceiling or wall installation.
- Shade can be mounted by means of snap-in click brackets.
- Pull bar handle allows easy hook-in of constant tension shade into bottom hold-down brackets; additional intermediary hold-down brackets are optional.
Specifications:
- Powder-coated black aluminum housing, dimension 40.5mm (1 11/16") wide x 47.2mm (1 7/8") high.
- Stainless steel snap brackets to easily click into top housing lips.
- Extruded aluminum (fabric) roll-up head rail tube, made of 6063-T5 alloy.
- Black powder-coated aluminum pull bar with black nylon handle.
- Internal constant tension steel spring.
- Woven polyester sun-blocking screen fabric that leaves some visibility for safety reasons. Meets FMVSS-302 flammability standards.
Product mechanism: Manual
Product categories: Guided & Constant Tension Shades, Single Roller Shades
Technical Specifications:
- Powder-coated black aluminum housing: 40.5mm (1 11/16") wide x 47.2mm (1 7/8") high
- Stainless steel snap brackets
- 6063-T5 alloy extruded aluminum roll-up head rail tube
- Black powder-coated aluminum pull bar with black nylon handle
- Internal constant tension steel spring
- Woven polyester sun-blocking screen fabric, FMVSS-302 compliant
