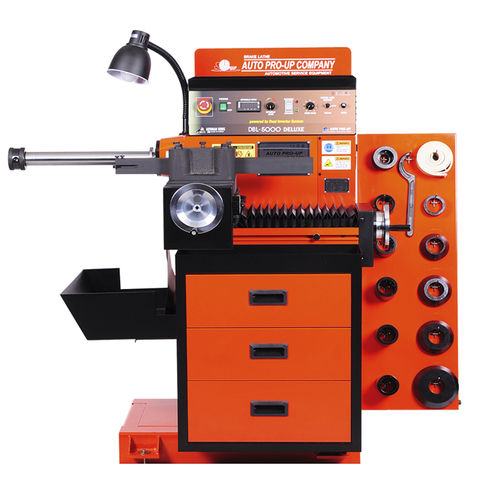

Brake drum lathe DBL-5000 DLXmanualheavy-dutyfor brake discs
Add to favorites
Compare this product
Characteristics
- Control type
- manual
- Spindle orientation
- horizontal
- Applications
- heavy-duty, brake drum, for brake discs
- Other characteristics
- powerful
- Diameter
Max.: 420 mm
(16.54 in)Min.: 0 mm
(0 in)- Spindle speed
Max.: 120 rpm
(753.982 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
DBL-5000 DLX Specifications
Power Requirements - 220 volt 50/60hz 110 volt optional
Motor - 2 HP (1.50kW)
Phase - 3
Drive system - Direct-driven
Dual Inverter System - O
Spindle Speed - 0-120RPM. Multi-speed
Feed Rate - Electronically Variable
Arbor Diameter - 1.25“ (50mm)
Arbor Tolerance - 90kg
Max. Rotor Diameter - 410mm
Max Rotor Thickness - 60mm
Max. Drum Diameter - 420mm
Max Drum Depth - 160mm
Chip Collector - O
Workbench - O
Extra Storage - O
Safety Sheild - X
Optional Accessory - Standard 1.25“ Arbor Kit
Shipping Weight - 560kg
Shipping Dimensions - W:1200 D:850 H:1600 (mm)
Disk & Drum Lathe
Designed for Heavy-Duty Drums Solid Cast Iron Structure
Powered by Dual Inverter System to control Spindle and Feed Ra: Powerful 2 HP Motor
Flexible LED worklihgt & Large Chip Collector
