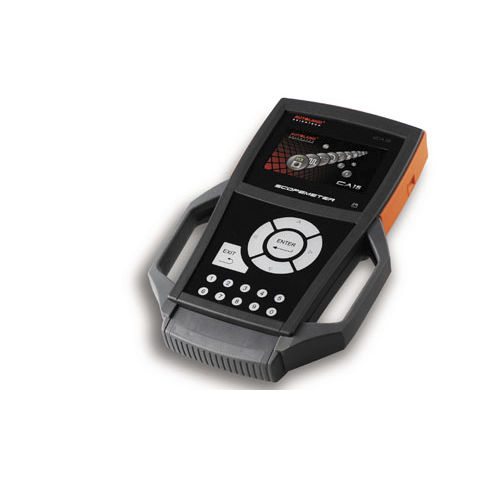

Digital oscilloscope CA15

portable

This unit is powered by battery (18650 Li-ion Battery). Please install the proper battery before powering up the device. ◎ Sensor cable is only designed for Scope Meter testing ususage. DO NOT use the cable for other purpose. ◎ The Device is only designed for working temperature environment between 0 - 50 Celsius or 32 – 122 Fahrenheit. ◎ Please DO NOT expose this device to extreme moisture nor clean face plate by applying any liquid directly to the face plate. If any liquid permeates into the device, shut down the device immediately. ◎ If any dirt on the screen, please apply mild cleaner on soft cleaning cloth to clean. ◎ DO NOT hit or drop the device. ◎ DO NOT disassemble the device or remove the back panel of the device. ◎ Please follow the instructions stipulated within this manual for operating this device safely. Product Specification CA 15 Specificaiton ◎ Working Voltage: 3.6V ◎ Working Current: 600mA ◎ Working Tempurature: 0 - 50 Celsius ◎ Dimension: 33mm(H)*185mm(W)*285mm(L) ◎ Product Weight: 730g CA15 Functional specification ◎ Measuring Voltage: AC250V DC220V
