Thermal transfer printing machine AutoLabel 600P™

for labelsfor packagingmonochrome

Overview
The AutoLabel 600P thermal transfer printer performs inline printing of graphics, text and barcodes directly onto AUTOBAG® brand pre-opened bags, removing a separate labeling step and simplifying production flow.

Key details
The AutoLabel 600P is available in 203, 300 and 600 dpi. It improves print registration and bag sensing through enhanced bag web flow, offers easier ribbon loading and maintenance access, and includes a 3rd Generation Ribbon Saver to reduce ribbon waste and increase effective ribbon capacity.

Supported printing and software
Supports high-resolution graphics, resident and downloadable fonts for lot/date codes and human-readable text, and a wide range of linear and 2D barcodes for identification, tracking and compliance. Uses AutoLabel Designer label creation software with database connectivity for networked label storage and printing.

Features and Benefits

• Available resolutions: 203, 300, 600 dpi
• Print speeds up to 12 in/s (300 mm/s); at 600 dpi up to 6 in/s (150 mm/s)
• Improved bag web flow for tighter registration and more reliable bag sensing
• No compressed air required; standard electrical supply (110–240 V AC, 50/60 Hz)
• Accessible design for faster ribbon loading and maintenance
• System-matched AUTOBAG® pre-opened bags and AutoLabel Thermal Transfer Ribbon
• 3rd Generation Ribbon Saver minimizes empty space between labels to reduce waste
• Thermal transfer ribbons resist scratching, smearing and flaking and help extend printhead life

Supported barcode symbologies

• Linear: Code 39 (Code 3 of 9), UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Code 11, Code 93, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2/5 digit add-on, POSTNET, UCC/EAN-128, Telepen, Planetcode, FIM, USPS-4 State
• 2D: MaxiCode, PDF417, USD-8, DataMatrix, QR Code, Codeablock, Code 16k, Aztec, TLC 39, Micro PDF417, GS1 DataBar

Specifications (table)
Weight: 495 lb (231 kg) with AUTOBAG® 600; 75 lb (27 kg) printer alone
Electrical: 110–240 V AC, 50/60 Hz
Power consumption: 800 W with AUTOBAG® 600; 300 W (VA) alone
Air feed: No air required
Label size: Up to 4 in (100 mm) wide; up to 20 in (500 mm) long
Print speed: Up to 12 in/s (300 mm/s); 600 dpi up to 6 in/s (150 mm/s)

Technical specifications

• Model: AutoLabel 600P
• Print resolutions: 203, 300, 600 dpi
• Maximum label size: 4" x 20" (100 mm x 500 mm)

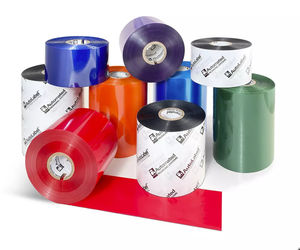

• Consumables: AutoLabel Thermal Transfer Ribbon; Ribbon Saver technology
• Software: AutoLabel Designer with enhanced database connectivity
• Barcode support: extensive resident linear and 2D symbologies (see list)
