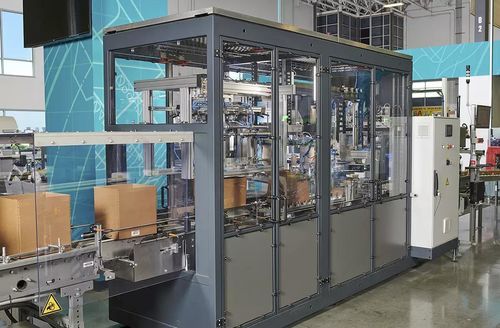

Automatic box height reduction machine E-Cube

Overview
Automates right-sizing for corrugated shipping cartons to improve throughput and reduce dimensional weight and void fill costs in e-commerce and direct-to-consumer fulfillment operations. The SEALED AIR® E-Cube system constructs a box base, accepts product by pick-into-container workflows, measures product height, adjusts corner heights and folds and secures upper flaps to produce a right-sized shipping carton suitable for single or multi-item orders and fragile goods.

How it works
The E-Cube forms and seals corrugated cartons on demand. Process sequence: construct box base → product is placed directly into the container → system measures content height → corners are adjusted to the measured height → upper flaps are folded and secured to deliver a right-sized carton ready for shipment.

Features and benefits

• Throughput: configurable 480–960 boxes per hour depending on footprint
• Patented right-sizing technology to reduce parcel dimensions and dimensional weight charges
• Reduced void space lowers cushioning material consumption and cost
• Consolidates box inventory, saving warehouse space
• Compression option available for apparel handling
• 100% corrugated packaging compatible with recycling streams
• No-knife safety technology eliminates use of sharps

Specifications

• Speed: 480 to 960 boxes/hour (depending on footprint)
• Box size range: from 220 × 180 × 50 mm to 650 × 400 × 400 mm
• Corrugated flute: from E-Flute (1.5 mm) to BC-Flute (7 mm)
• Noise level: Low <78 dBA
• Safety: No-knife technology (eliminates use of sharps)
