Electric shrink tunnel T series

large-formathot airdouble-chamber

Overview

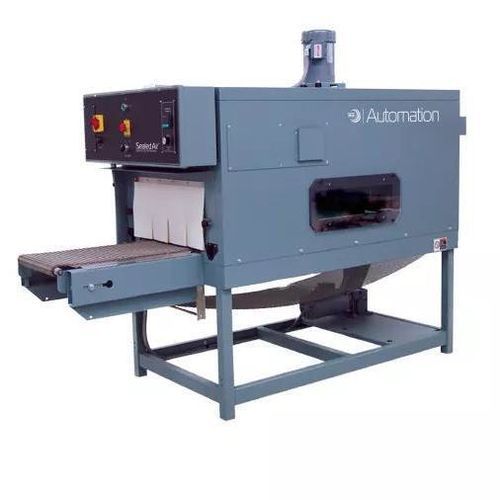

SEALED AIR® brand Shanklin® shrink wrap tunnels combine controlled heat and airflow to shrink film securely around products for tamper‑resistant packaging. Models are available in single chamber, dual chamber and large capacity configurations to suit high‑speed, irregular or wide/bulky items. Tunnels integrate with Shanklin automatic wrappers for continuous packaging lines and are engineered for consistent thermal performance.

Features and Benefits

• Available in single chamber, dual chamber and large capacity chamber models
• Digital temperature control with ±2° tolerance for repeatable results
• Adjustable air velocity and multiple control options to optimize shrink profiles
• Fin strip heaters — no cool down cycle required
• Continuous 2-inch single-piece insulation to eliminate hot/cold spots
• Inverter-rated AC blower motor with balanced blower wheel for stable airflow
• Robust industrial design for reliable operation in production environments

Specifications — Shanklin® Single Chamber Shrink Tunnel Model T-71
Tunnel Passage: 10”H x 22”W x 60”L
Tunnel Size: 68.5”H x 36”W x 92”L
Speed: 25 to 150 ft. per minute
Pairs With: Shanklin Triumph 2 Wrapper

Specifications — Shanklin® Dual Chamber Shrink Tunnel Model T-62
Tunnel Passage: 10”H x 18”W x 61”L / each
Tunnel Size: 38”H x 38”W over conveyor
Pairs With: Shanklin Myspeed Servo Series

Specifications — Shanklin® Large Capacity Shrink Tunnel Model T-7H
Tunnel Passage: 12”H x 22”W x 42”L
Pairs With: Shanklin Automatic L-Sealer

Specifications — Shanklin® Single Chamber Shrink Tunnel Model T-81
Tunnel Passage: 12”H x 28”W x 60”L
Tunnel Size: 68.5”H x 42”W x 99”L
Speed: 25 to 150 ft. per minute
Pairs With: Shanklin Triumph 2 Wrapper

Specifications — Shanklin® Dual Chamber Shrink Tunnel Model T-72H
Tunnel Passage: 10”H x 18”W x 61”L / each
Tunnel Size: 42”H x 41”W over conveyor
Pairs With: Shanklin Myspeed Servo Series

Specifications — Shanklin® Large Capacity Shrink Tunnel Model T-9
Tunnel Passage: 6” or 20” H x 36”W x 14”L
Pairs With: Shanklin Automatic L-Sealer

Technical specifications

• Models available: T-71, T-62, T-7H, T-81, T-72H, T-9 (single chamber, dual chamber, large capacity)
• Temperature control: digital, ±2° tolerance
• Airflow: adjustable/optimized air velocity and control options
• Heating: fin strip heaters — no cool down cycle
• Insulation: continuous 2-inch single-piece insulation to eliminate hot/cold spots
• Blower: inverter-rated AC blower motor with balanced blower wheel
• Typical conveyor speed range (applicable models): 25 to 150 ft. per minute
• Pairing: compatible with Shanklin Triumph 2 Wrapper, Myspeed Servo Series, and Shanklin Automatic L-Sealers depending on model
