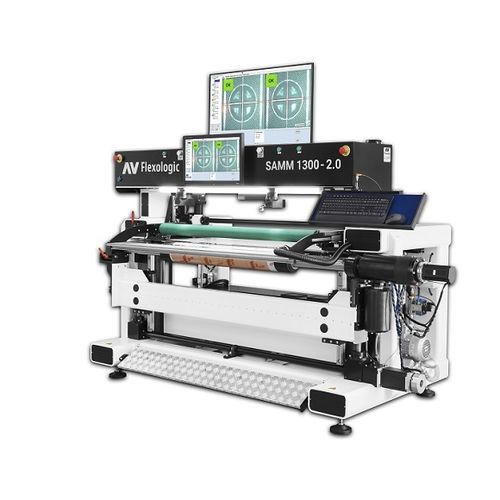

Automatic mounting machine SAMM 2.0

semi-automaticflexo plate

The Automatic SAMM 2.0 is the world’s fastest and most accurate flexo plate mounter with unmatched repeatability and speed. The next generation SAMM is the solution to common trends in the flexo printing industry such as higher quality demands, shorter and more frequent job runs. These challenges are easily tackled with 3rd generation Automatic Mounting. 1 Robotic positioning The machine automatically positions the flexo plate with extreme accuracy, using a robotic table and the patented Image Recognition. 2 HD Ethernet cameras Ultra high-resolution cameras which move automatically into the exact position. 3 Automatic pressure roller Ensures even mounting without any air inclusions 4 Motorized front table Automatic moving table which enables operator free mounting. 5 Quality report The mounting marks are checked and a PDF is automatically created 6 Vertically moving cylinder It allows a fixed distance of the cameras to the plate, so no focusing of the lenses is needed. 7 Laser pointers Indicators of where the mounting marks are located for placing easily the plates. SAMM 2.0 Optional Extras 1 TIR Sleeve Measurement System 2 Automatic EasyReg detection 3 Tape holder on precision rail 4 Cutting knife for applying tape 5 Cutting knife for plates 6 Barcode scanner 7 Sleeve tracking system 8 Shaft coupling for cylinders
