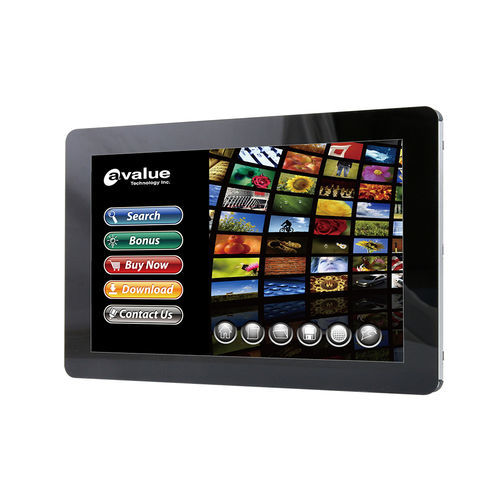

PCAP touchscreen panel PC OFT-07WAD

multitouch screen7"Intel® Alder Lake-N

64GB eMMC CE,FCC CLASS A System Information CPU Cooler (Type) Heatsink Storage Storage 64GB eMMC Ethernet LAN Chipset Realtek RTL8111I-CG 10/100/1000 Base-Tx GbE compatible Power Requirement DC Input +12V ~ +24V DC Input Connector Lockable DC Jack Certification Certification Information CE, FCC Class A Panel Luminance 350 cd/m2 Viewing angle 87.5 (U), 87.5 (D), 87.5 (L), 87.5 (R) External I/O External I/O Connector 1 x H/W power button Audio Port 1 x Audio Jack TRS HDMI 1 x HDMI 2.0 Out DC input 1 x DC Jack Internal I/O Internal I/O Connector 1 x A-MIC 2 x GPIO 1 x I2C 1 x M.2 2230 E-Key 1 x Micro SD Slot 1 x MIPI DSI 1 x RS-232/RS-485 1 x RTC Battery 1 x Speaker 2 x Touch Button DC In / Out Characteristics Input Voltage Range DC +12 ~ +24V Mechanical Power Type AT Mechanical & Environmental Operating Temp. 0°C ~ 40°C (32°F ~ 104°F) Storage Temp. -20°C ~ 60°C (-4°F ~ 140°F) Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Dimension (W x L x H) 183.1 x 115.85 x 27.3 mm Weight 0.55kg Ordering Information Ordering Information TBD
