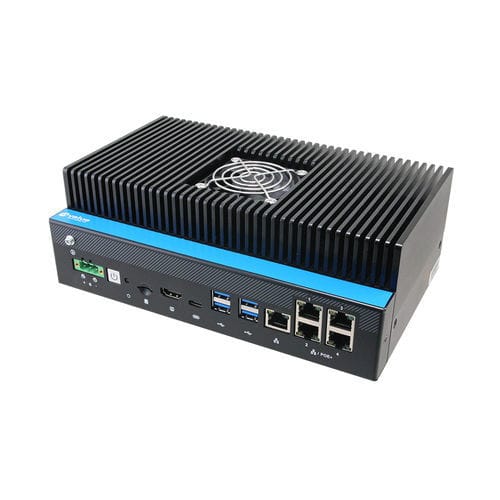

Edge AI PC AIB-NIAOdesktopNVIDIA® Jetson AGX Orin™USB 2.0
Add to favorites
Compare this product
Characteristics
- Type
- Edge AI
- Configuration
- desktop
- Processor
- NVIDIA® Jetson AGX Orin™
- Ports
- USB 2.0, HDMI, M.2 Key B, LPDDR4, RS-232, USB 3.0, RS-485, RJ45, gigabit Ethernet, RS-422, Mini PCIe, M.2 Key M
- Data storage
- eMMC 64GB
- Operating system
- Linux® Ubuntu™
- Memory
- 32 GB, 64 GB
Description
Operating Temp. -25°C ~ 70°C (-13°F ~ 158°F)
Expansion
Expansion
1xmicro SD Slot
4xNano SIM Socket
External I/O connector
COM
16 x GPIO (8x In, 8xOut)
1 x Debug
4 x SYNC I/O (SYNC_IN/SYNC_OUT/SYNC_PPS)
Function key
1 × Power KEY
1× Recovery KEY
Video Encode
H.265
1x 4K60，3x4k30，6x 1080p60，12x 1080p30
H.264
1x 4K60，2x 4K30，5x 1080p60，11x 1080p30/
H.265
2x 4K60，4x4k30，8x 1080p60，16x 1080p30
H.264
2x 4K60，4x 4K30，7x 1080p60，15x 1080p3
Video Decode
H.265
1x 8K30，2x 4K60，4x4k30，9x 1080p60，18x 1080p30
H.264
1x 4K60，2x 4K30，5x 1080p60，11x 1080p30 /
H.265
1x 8K30，3x 4K60，6x4k30，12x 1080p60，24x 1080p30
H.264
1x 4K60，3x 4K30，7x 1080p60，14x 1080p30
Mechanical & Environmental
Vibration Test
3 Grms,10Hz~500Hz,1h/axis
Power Requirement
DC 12V-48V
Dimension (W x L x H)
233 x 144x 80 mm
Weight
2.3 kg
Operating Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
Storage Temp.
-40°C ~ 80°C (-40°F ~ 176°F)
Storage Humidity
0%-90% non-condensing
