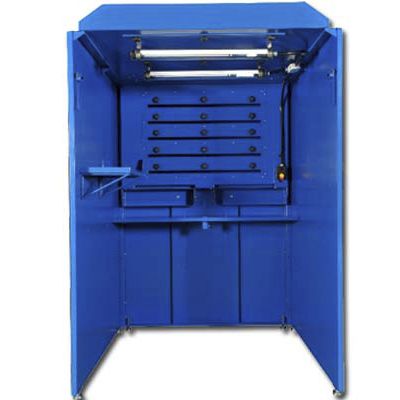

The WB-5000 series comes standard with 1 1/2" x 4" (rectangular tubing) skeleton with 12 gauge dual panels as the shell. The WB-5000 comes in standard sizes of 5'x5' or 6'x6'. Custom sizes are available to suit your needs. Ideal for use as a stand alone weld extraction booth or in a series easily integrated with a complete central ventilation and extraction system.
Models:
WB-5055-S: 5' x 5' single booth
WB-5055-D: 5' x 5' double booth
WB-5066-S: 6' x 6' single booth
WB-5066-D: 6' x 6' double booth
Standard Features:
Double panel wall construction: 12 gauge welding steel
Back draft and up draft capability with dampers
Accommodates top mount filtered collector or external collector
Explosion proof lights
12 gauge panel construction
Adjustable leveling feet with mounting plate
Adjustable rear shelf
Electrical outlets (2)
Fume arm inlets in ceiling (2 at 6" diameter)
Side-to-side, back-to-back or stand alone installations
Welding curtain rod
Optional Features:
Custom sizes
Fume collector top-mountable
Ceilings
Shelf for welder
6" diameter x 7' length fume arm
Air/Gas Outlets
VFD
