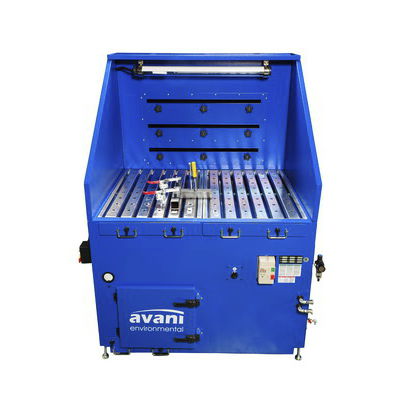

Welding downdraft table SDT-3 / SDT-5

The SDT-3 / SDT-5 downdraft table is Avani’s newest design with the welder in mind, featuring backdraft and downdraft exhaust and explosion proof lighting. This table is a great choice for plasma processes with heavy smoke. It utilizes a two-phase filtration system. Standard Features: High Efficiency Re-usable Filter Cartridge Heave Gauge Powder Coated Steel Accepts 5/8" Jig Fixtures Manual Reverse Jet Pulse Cleaning UL Approved Control Panel Easy Access Filter Doors 2 Electrical Outlets Differential Pressure Gauges Optional Features: Explosion Proof Light Exhaust 80% back draft and 20% downdraft Explosion Proof Vents Different Filter Media Silencers: inlet and outlet Rotary Air Lock Welding machine shelf Gas tank shelf Fume arm addition Customized Colors Specification SDT-3: Nominal Air Flow: 1500 cfm Motor: 3 HP NEMA, Aluminum Impeller Compressed Air Requirement: 90 PSI Dimensions: 58"x47"x71" Weight: 1100 Specification SDT-5: Nominal Air Flow: 2340 cfm Motor: 5 HP NEMA, Aluminum Impeller Compressed Air Requirement: 90 PSI Dimensions: 58"x47"x71" Weight: 1200
