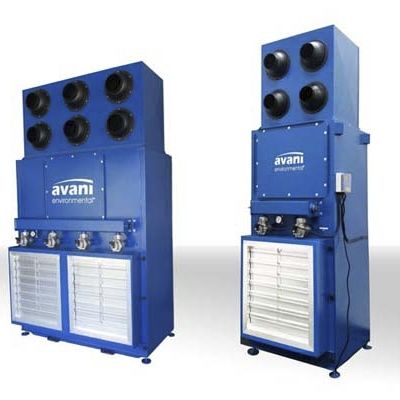

Filter dust collector ATAC

reverse air cleaningself-cleaning

Self-contained air cleaning system The ATAC series dust collector is a self-contained system with vertical positioned filters. Vertical up-flow design along with venturi assist reverse jet pulse cleaning provide ideal material release and favorable filter life. Units are specifically designed for ambient air cleaning applications and are equipped with adjustable discharge nozzles to deliver desired air flow patterns. Filter technology specific to plant layout, contaminant generation and desired steady state flow patterns. Removes airborne dust from multiple sources Recirculates clean air, eliminating the need for expensive make-up air Reverse jet pulse design optimizes filter cleaning extending filter life Reduced installation ccosts No duct-work required! Simple and cost effective relocation with plant layout changes Construction: 11 ga / 14 ga carbon steel welded Base Unit: Intake louvers, dust drawer, filters, fan, discharge plenum & nozzles, cleaning system and motor control with overload Inlet: Aluminum louver with back blast prevention Motor / Blower: TEFC motor with backward incline fan Pulse Control fully programable on-demand reverse jet pulse cleaning Sound rating: 78 dBA @ 5 ft Height - 126 3/16 in Width - 37 3/8 in Depth - 41 3/4 in Shipping weight - 1450 lb Nominal airflow - 1250 cfm Motor & Blower - 5 HP 460-3-60 Cartridges - 4 Nozzle - 6 Discharge throw velocity 400 FPM @ 26 ft 200 FPM @ 47 ft 100 FPM @ 69 ft
