Fused silica lens element COL-UV/VIS
asphericalUVNIR

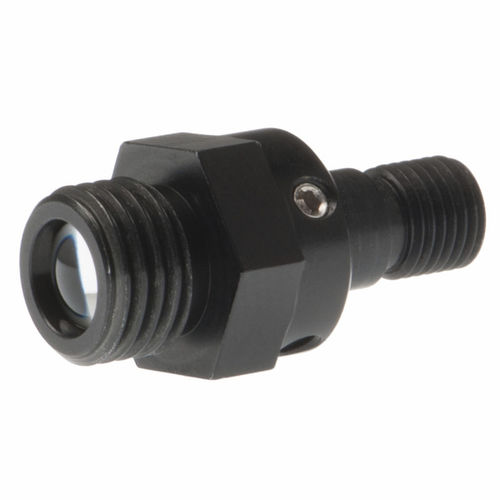

Fused silica lens element - COL-UV/VIS - Avantes - aspherical / UV / NIR
Fused silica lens element - COL-UV/VIS - Avantes - aspherical / UV / NIR
Add to favorites
Compare this product
Go to the Avantes website for more information

Characteristics

Material
fused silica
Optical characteristics
aspherical, UV, NIR
Applications
collimator
Diameter

6 mm, 9 mm, 25 mm
(0.24 in, 0.35 in, 0.98 in)

Wavelength

Min.: 200 nm

Max.: 2,500,000 nm

Description

To convert divergent beams of light into a parallel beam, a collimating lens is needed. Avantes collimating lenses are optimized for the UV/VIS/NIR range (200-2500 nm) and have anodized aluminum housings. The COL-UV/VIS and COL-90-UV/VIS have a 6mm diameter lens with a confocal length of 8.7mm. The COL-90-UV/VIS is used when a 90-degree exit angle is needed. The focal point for the COL-UV/VIS and COL-90-UV/VIS can be adjusted. The COL-UV/VIS can also be ordered with an FC/PC connector. The COL-UV/VIS-25 is the big brother of the COL-UV/VIS. It has a lens diameter of 25mm and a confocal length of 50mm. This larger collimating lens is suitable for collection of light in free space.
