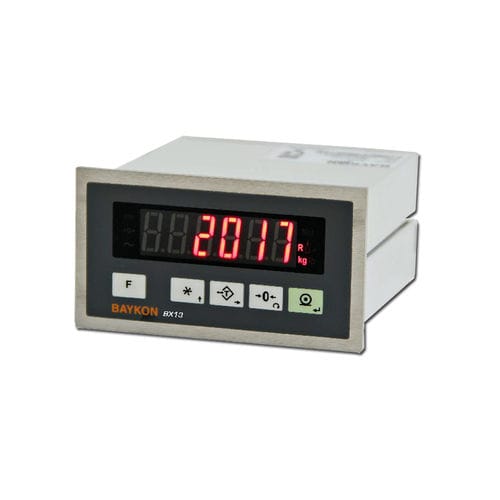

Filling machine weighing controller Baykon BX13

digitalModbus RTUharsh environments

R61 & R76 APPROVED FOR AUTOMATIC GRAVIMETRIC FILLING The BX13 is an approved (R61 and R76) professional filling controller for any type of liquid, bulk or granule. The BX 13 is OIML approved for Automatic Gravimetric Filling and has 4 filling modes for open container filling and 2 modes for packing/bagging. Multiple fieldbus options make the BX13 ideal for PLC integration and advanced digital filtering provides extreme stability. Valve control and communications is easy with 7 Digital Outputs (5 relay contacts and 2 non-isolated)| and 4 programmable Digital Inputs. Modbus RTU is included as standard along with an RS232 and RS485 Serial Port. Multiple Filling Modes with 7 Digital IOs and multiple fieldbus options Powerful calibration options include eCal Electronic Calibration without the need for test weights and sCal for span only calibration. This enables fast and easy setup and servicing and is ideal for calibrating large hoppers where emptying them is not an easy option. A small sized aluminium body provides the ideal solution for panel installation where space is a premium and the large LED display provides easy weight reading from a distance. The BX13 has a stainless steel front panel making it suitable for use in harsh environments. A built-in webserver allows remote viewing and control via any PC on the same network as the BX13-EN. • OIML R61 and R76 Approved • Dedicated Filling Controller • Approved for Auto-Gravametric Filling • Liquid, Bulk or Granules • Multiple Filling Modes • Multiple Fieldbus Options • Modbus RTU as standard • RS232 and RS485 Port • 7 Digital Outputs/4 Inputs • Advanced Filtering • 12-28VDC • 1600 Samples/second
