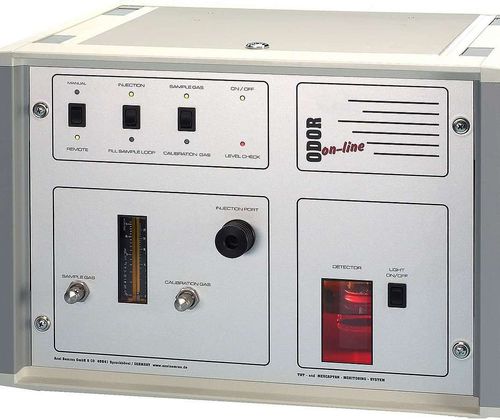

Gas chromatograph ODOR on-line

for pharmaceutical applicationson-linecompact

Gas chromatograph for the determination of odorants The gas chromatographic measuring method achieves a separation of all sulphur substances, which can then be determined individually. In contrast to hand-held measuring instruments, cross sensitivities are thus excluded. The measuring method conforms to DIN 51855/7 and ISO 19739 (ISO 6326T2). In the field of odorization control, ODOR on-line is recommended by the DVGW in G280 as a reference method. THT and other sulphides TBM Scentinel E, Spotleak and other mercaptan mixtures Ethyl mercaptan (mostly used for odorization of liquefied gas) H2S (hydrogen sulphide) Automatic calibration Automatic refill device for the detector Including remote transmission 4 - 20 mA Manual syringe injection of gas samples possible 12 V operation possible User-friendly software interface DIN-compliant report generation Electronic carrier gas control Calibration gases and suitable adsorption-free control units Carrier gas supply (compressor or compressed gas cylinders) Container for the transport of gas samples Syringes and many more.
