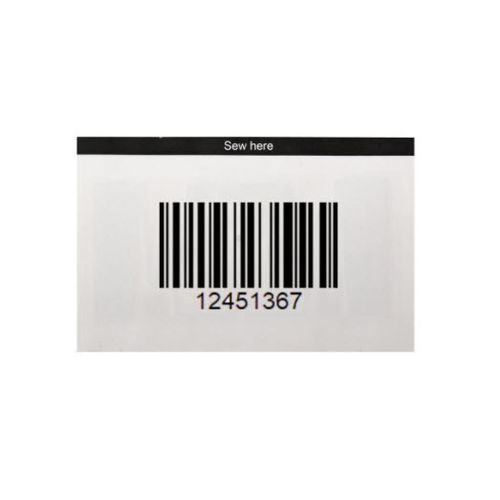

Printable label AX’Label Textile

RFIDsewingpaper

Former name: Woven tag UHF & NFC This dual-frequency label complies with EPC Class2 Gen2, ISO 18000-63 and ISO 14443A-3 standards. It is designed for textile applications. It can be sewn on any type of fabric. The personalization options are multiple: encoding, printing of logo, numbers and barcodes. Type - UHF & NFC Frequency - EU: 865-869MHz US: 902-928MHz NFC : 13,56 MHz RF Standard - EPC Class2 Gen2, ISO 18000-63, ISO/IEC 14443A-3 Dimensions - 60 x 38 mm Material - Laminated paper Applicable surface - Fabric Chips available - EM4423 Write cycles - 100,000 times Data retention - Up to 10 years Memory - EPC memory : 128bits; user memory: 160bits; NFC user memory: 1920bits Read range - 902-928 MHz: 3-6m* 865-868 MHz: 3-6m* 13.56MHz: 3.5cm* *Depends on the reader and the environment Temperature - Storage temperature: -40°C to +80°C Operating temperature: -20°C to +120°C Application field - Apparel management, merchandise control, inventory management, apparel anti-counterfeit…
