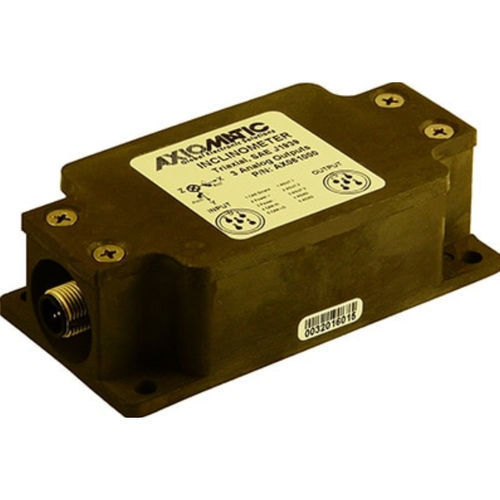

Triaxial inclinometer AX061000

analogSAE J1939MEMS

The triaxial inclinometer is designed to accurately measure inclination angles in three directions and in the range of ±180º. The resolved angles can be then sent to the SAE J1939 fieldbus or output as voltages using three available inclinometer signal voltage outputs. Due to a powerful microcontroller and MEMS sensor, the inclinometer can perform pre-processing of the angular information according to the users’ needs. The controller provides reliable, real-time, accurate and stable slope angle data. Specifications Measurement Range Triaxial: -180º to 180º (0 to 360º) Output(s) 3 analog outputs Communications 1 CAN port (SAE J1939) CAN Baud Rate Auto-Baud-Rate detection Operating Voltage 12/24 VDC Nominal (9-36 VDC) Control Logic User programmable functionality using the Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K Enclosure Anodized, cast aluminum enclosure, with a gasket and o-rings Connection(s) 2 5-pin M12 round connectors (A-coded) Operating Temperature -40 to 85 ºC -40 to 185 ºF Applications Agricultural, off-highway and mining equipment Platform levelling and stabilization in industrial machines Navigation system component
