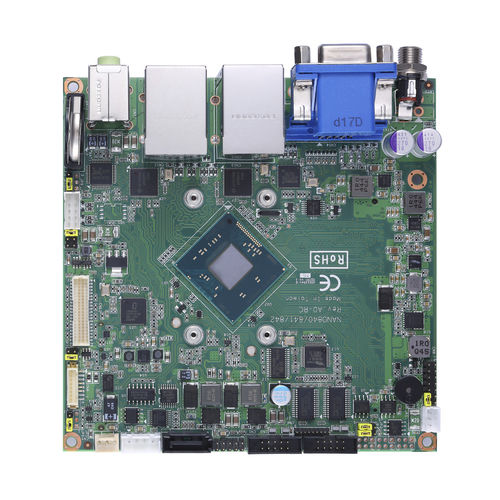

Nano-ITX motherboard NANO842

Intel® Celeron®quad-coreIntel®

Nano-ITX SBC with Intel® Celeron® Processor J1900/N2807, LVDS/VGA/HDMI, Dual LANs and Audio Intel® Celeron® Processor J1900/N2807 (Bay Trail SoC) 1 DDR3L-1066/1333 SO-DIMM, up to 8GB 5 USB 2.0 ports and 1 USB 3.0 port 2 COM ports 2 PCI Express Mini Card slots Introduction The NANO842 Nano-ITX motherboard is designed to support the Intel® Celeron® processors quad-core J1900 and dual-core N2807 (code name: Bay Trail). A DDR3L SO-DIMM socket located on the bottom of the board can support up to 8GB of DDR3L memory. It can handle operating temperatures from -20°C to 70°C, and runs on +12V DC input. This 120 x 120 mm industrial embedded board comes with multiple display outputs: HDMI, LVDS and VGA with visual experiences enhanced for dual-view supported. The Axiomtek NANO842 is an ideal solution aimed at embedded, industrial, and IoT applications.
